| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,382 pcs
|
3382 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

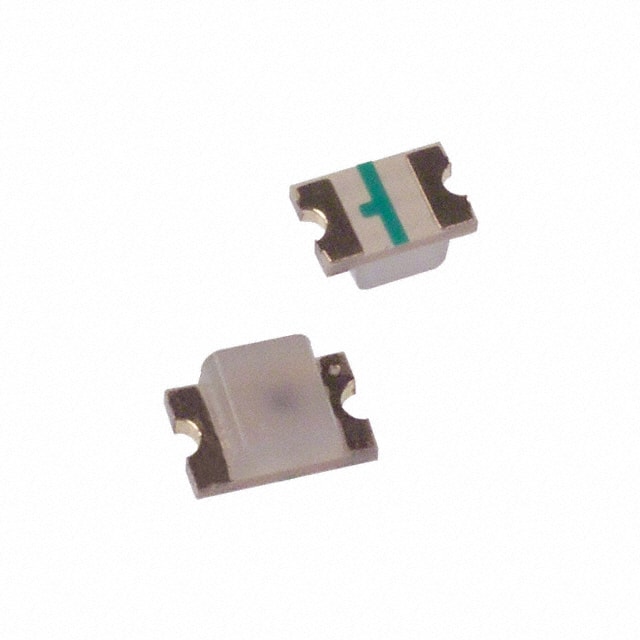

The Broadcom Limited HSMG-C170 is a surface-mount chip LED with a green color and diffused lens. It is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a maximum height of 0.80mm.
This component features a standard configuration with a forward voltage of 2.2V and a current rating of 20mA. It emits light with a wavelength of 570nm and has a luminous intensity of 15mcd. The lens is white and diffused, with a viewing angle of 170°.
The HSMG-C170 is suitable for various electronic indications where a compact, surface-mount green LED is required. Its diffused lens provides a wide viewing angle, making it useful for general-purpose status indication.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.2V at 20mA.
The typical current rating is 20mA.
The typical luminous intensity is 15mcd at 20mA.
The HSMG-C170 LED is supplied in an 0805 (2012 Metric) package.
The viewing angle is 170 degrees.
The color of the HSMG-C170 LED is green.
