| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

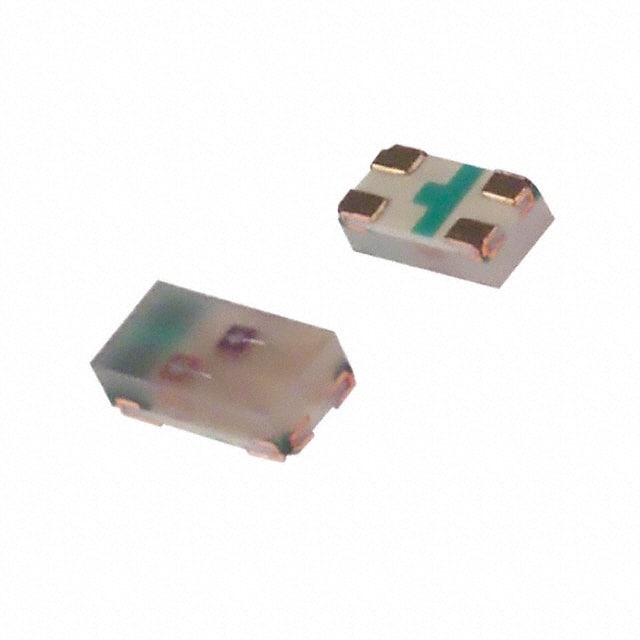

The Broadcom Limited HSMF-C167 is a surface-mount, dual-color LED designed for indication purposes. It integrates both Green and Orange emitters within a single 0603 package, allowing for independent control.
This LED operates with a forward voltage of 2.2V for both colors and a rated current of 20mA. The Green LED emits light at a wavelength of 570nm with a luminous intensity of 15mcd, while the Orange LED emits at 605nm with 8mcd. The lens is white and diffused, providing a wide viewing angle of 120°.
The component measures 1.60mm in length and 0.80mm in width, with a maximum height of 0.50mm. Its compact size and surface-mount capability make it suitable for various electronic designs where space is a constraint. The diffused lens ensures a broad light distribution.
This part is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is designed for applications requiring dual-color visual feedback.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HSMF-C167 LED emits both Green and Orange light.
The forward voltage for both the Green and Orange emitters is 2.2V.
The current rating for both the Green and Orange emitters is 20mA.
The HSMF-C167 LED is supplied in a 0603 (1608 Metric) package.
The viewing angle of the HSMF-C167 LED is 120°.
