| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104,000 pcs
|
104000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Depth | |
| Height | |
| Height (Max) | |
| Illumination Color | |
| Length | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Number of LEDs | |
| Number of Pins | |
| Power Dissipation | |
| Reverse Voltage | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength | |
| Width |

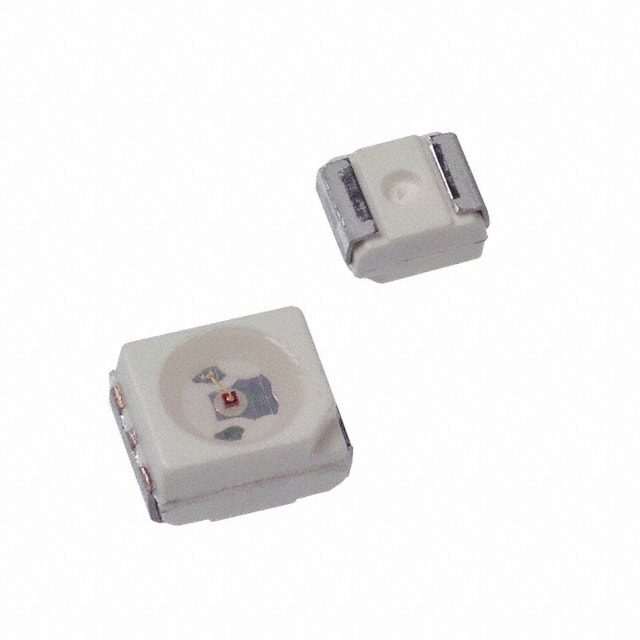

The Broadcom HSMD-A100-J00J1 is a discrete LED lamp in an orange color, housed in a 2-PLCC surface mount package. It operates with a typical forward voltage of 2.2V and a forward current of 20mA, producing a luminous intensity of 15mcd.
This LED has a peak wavelength of 602nm and a wide viewing angle of 120°. The lens is clear and colorless, with a circular, round style. The dimensions of the package are 3.20mm in length and 2.80mm in width, with a height of 2.10mm.
Environmental specifications include RoHS3 compliance and an MSL rating of 1. The operating temperature range is from -55°C to 100°C. This component is suitable for various electronic indication applications requiring a reliable orange LED.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the HSMD-A100-J00J1 is 2.2V.
The luminous intensity is 15mcd at a test current of 20mA.
The viewing angle is 120°.
It comes in a 2-PLCC package designed for surface mounting.
Yes, the RoHS status is RoHS3 Compliant.
