| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,050 pcs
|
2050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,050 pcs
|
2050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Supplier Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

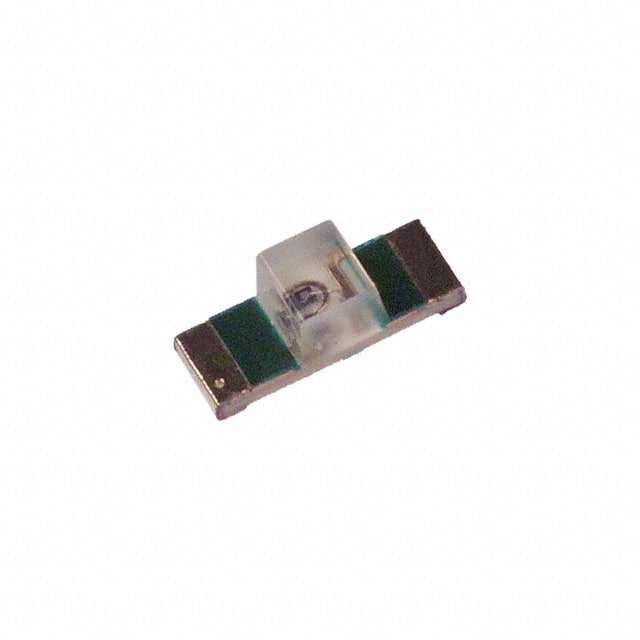

The Broadcom Limited HSMC-C265 is a discrete red LED designed for surface mount applications. It features a diffused lens for wide light distribution and a reverse package chip LED design.
Key electrical characteristics include a typical forward voltage of 1.9V and a recommended forward current of 20mA, producing a typical luminous intensity of 75mcd. The LED has a wavelength of 637nm and a wide viewing angle of 130°.
Mechanically, the component is housed in a 1305 (3412 Metric) package with dimensions of 3.40mm L x 1.25mm W and a maximum height of 1.10mm. The mounting type is Surface Mount, Bottom Entry. The lens color is white and diffused.
This LED is suitable for various indication applications where a red light source is required with a broad viewing angle and compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the HSMC-C265 LED is 1.9V.
The recommended forward current for the HSMC-C265 LED is 20mA.
The typical luminous intensity of the HSMC-C265 LED is 75mcd.
The HSMC-C265 LED has a viewing angle of 130°.
The HSMC-C265 LED is supplied in a 1305 (3412 Metric) package.
The HSMC-C265 LED is designed for Surface Mount, Bottom Entry mounting.
