| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,210 pcs
|
3210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Dominant Wavelength | |
| Forward Voltage | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Dimensions | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Luminous Intensity | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Package Dimensions | |
| Supplier Device Package | |
| Tape and Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

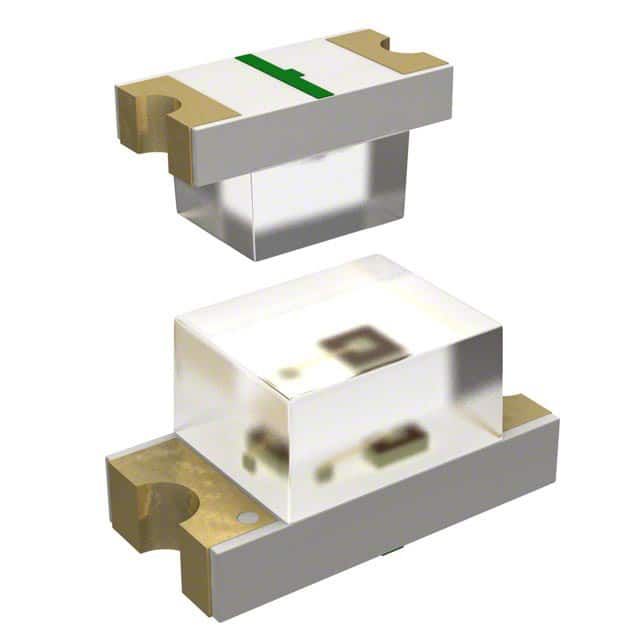

The Broadcom Limited HSMB-C190 is a blue chip LED in a compact 0603 (1608 Metric) surface mount package. It is designed for applications requiring color differentiation and efficient backlighting.
This LED operates with a typical forward voltage of 3.8V and a current of 20mA, producing a typical luminous intensity of 6mcd. The blue color is characterized by a peak wavelength of 466nm and a dominant wavelength of 428nm. It features a wide viewing angle of 170°, making it suitable for various illumination and indicator applications.
The package dimensions are 1.60mm in length and 0.80mm in width, with a maximum height of 0.80mm. The lens dimensions are 1.00mm x 0.80mm. The HSMB-C190 is compatible with IR reflow soldering processes and is available on tape and reel.
Key specifications include a typical forward voltage of 3.8V, a typical current of 20mA, and a typical luminous intensity of 6mcd. The dominant wavelength is 428nm, and the peak wavelength is 466nm. The viewing angle is a wide 170°.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the HSMB-C190 LED is 3.8V at 20mA.
The typical luminous intensity of the HSMB-C190 LED is 6mcd.
The HSMB-C190 LED has a viewing angle of 170°.
The package dimensions for the HSMB-C190 LED are 1.60mm in length and 0.80mm in width.
The operating temperature range for the HSMB-C190 LED is -30°C to +85°C.
The RoHS status of the HSMB-C190 LED is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the HSMB-C190 LED is 1.
