| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,860 pcs
|
3860 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Height (Max) | |
| LED Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Mounting Type | |
| Viewing Angle |

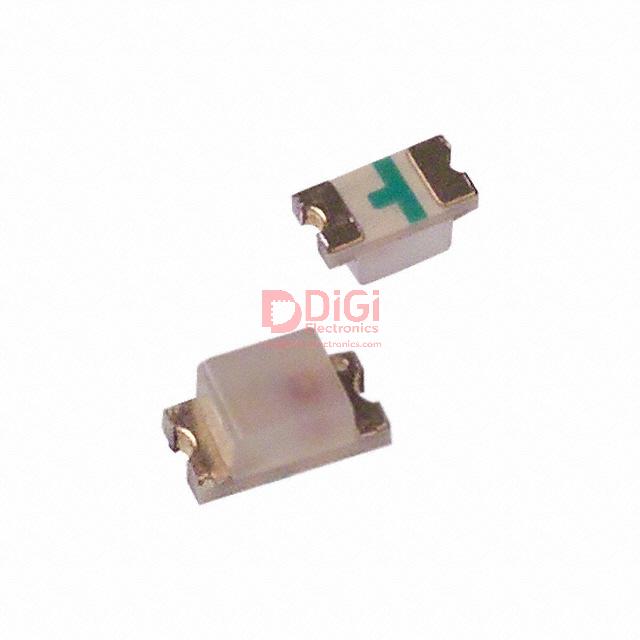

The Broadcom HSMA-S690 is an amber diffused chip surface mount LED. It operates with a typical forward voltage of 1.9V and emits light with a dominant wavelength of 590nm and a peak wavelength of 592nm. The luminous intensity is rated at 65mcd at 20mA, with a wide viewing angle of 165 degrees.
This LED is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a maximum height of 0.80mm. The lens is diffused and rectangular with a flat top, measuring 1.20mm x 0.80mm. Its surface mount design facilitates integration into various electronic circuits.
Suitable for general indication purposes, the HSMA-S690 offers a reliable amber light output in a small form factor. Its specifications make it a versatile component for applications requiring visual feedback.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the HSMA-S690 LED is 1.9V.
The dominant wavelength of the HSMA-S690 LED is 590nm.
The luminous intensity of the HSMA-S690 LED is 65mcd at a test current of 20mA.
The HSMA-S690 LED has a typical viewing angle of 165 degrees.
The HSMA-S690 LED is supplied in a 0603 (1608 Metric) package.
The HSMA-S690 LED is designed for surface mounting.
