| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,100 pcs
|
17100 pcs | On Request | 1 | On Request | On Request | 2016 | On Request | On Request | |
|
3,900 pcs
|
3900 pcs | On Request | 1 | On Request | On Request | 1007+ | On Request | On Request | |
|
135 pcs
|
135 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Forward Voltage | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature Range | |
| SVHC Present | |
| Viewing Angle |

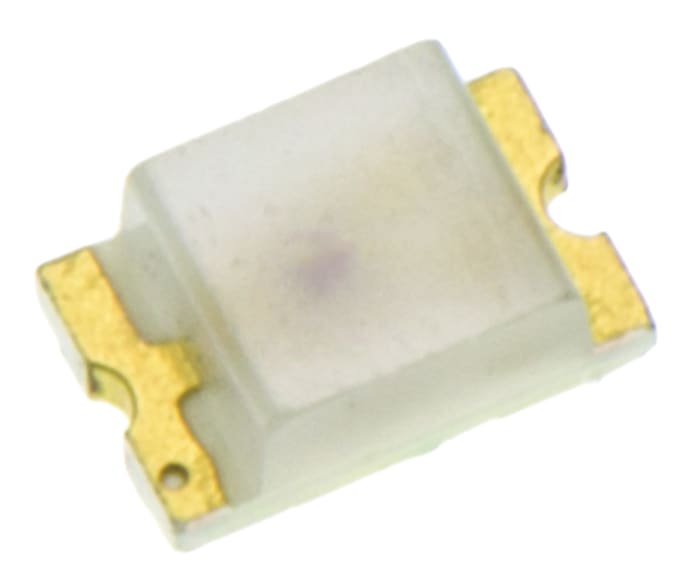

The Broadcom HSMA-C170 is a surface mount (SMT) Chip LED designed for various backlighting and indicator applications. It comes in a compact 2012 package with an industry-standard 0805 footprint.
Key electrical specifications include a forward voltage of 1.9V, a maximum forward current of 25mA, and a maximum power dissipation of 60mW. The LED emits amber light with a dominant wavelength of 592nm and offers a luminosity of 90 mcd. It has a wide viewing angle of 170°.
This LED is suitable for applications such as keypad backlighting, push button backlighting, LCD backlighting, symbol backlighting, and front panel indicators. The operating temperature range is -40°C to +85°C. The lens is clear with diffused optics, and the lens dimensions are 1.4 x 1.25 mm.
The HSMA-C170 series LEDs are compatible with IR solder and are available in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Typical forward voltage is 1.9V.
2012 surface mount package.
-40°C to +85°C.
592nm.
90mcd.
170°.
25mA.
