| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

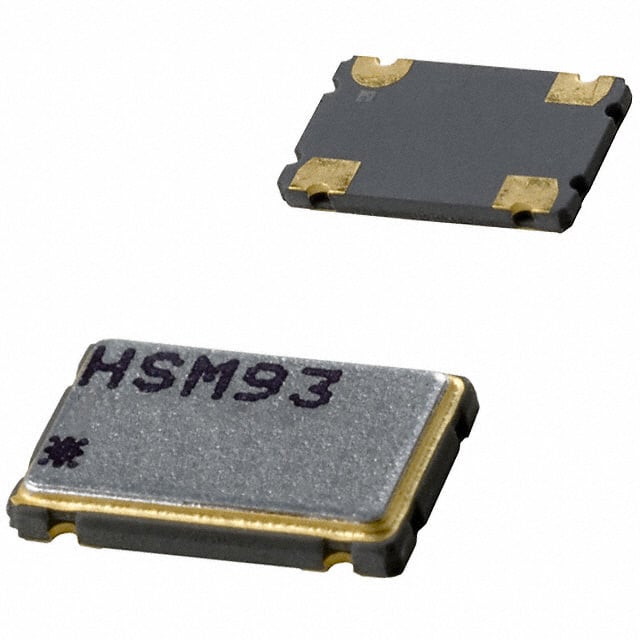

The HSM93-004.9152M is a 4.9152MHz HCMOS surface mount crystal oscillator (XO) from Connor Winfield. It is part of the HSM93 series of fixed frequency crystal oscillators designed for precision clock generation in a wide range of applications. The oscillator operates from a 5.0V supply voltage and provides a HCMOS output with ±100ppm frequency stability over the 0°C to 70°C operating temperature range.
Key electrical characteristics include a maximum supply current of 27 mA, output voltage high of ≥4.5V, output voltage low of ≤0.55V, and a duty cycle of 45% to 55% at 50% of Vcc. The device features a tri-state enable/disable function, with enable time of 100 ms and disable time of 100 ns. Rise and fall times are 6 ns maximum, and RMS jitter is 5 ps maximum.
The oscillator is housed in a 4-SMD, No Lead ceramic surface mount package measuring 7.5mm x 5.0mm x 1.4mm, suitable for high-density mounting. It is RoHS compliant and supplied in tape and reel packaging with 2000 pieces per reel.
This oscillator is ideal for use in telecommunications, networking, industrial control, and other systems requiring a stable and reliable clock source.
The supply voltage (Vdd) is 5.0V.
The package is 4-SMD, No Lead surface mount.
The operating temperature range is 0°C to 70°C.
Yes, it is RoHS3 compliant (unverified).
The frequency is 4.9152 MHz.
The frequency stability is ±100 ppm.
Yes, it features a tri-state enable/disable function.
