| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Forward Current | |
| LED Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Peak Forward Current | |
| Power Dissipation | |
| Radiant Intensity (Ie) Min @ If | |
| Radiant Intensity (Minimum/Maximum @ tp = 20 ms) | |
| Storage Temperature | |
| Storage Temperature (Minimum/Maximum) | |
| Tape & Reel | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

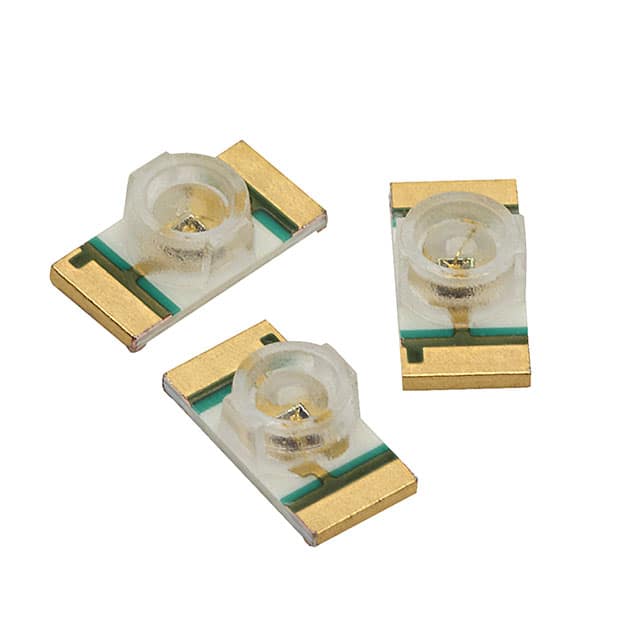

The Broadcom HSM8-C350 is a top-view, surface-mount infrared (IR) chipLED designed for various applications. It operates with an 850nm peak wavelength, making it suitable for remote controls, smart utility metering, and industrial automation light curtains.
This IR emitter features an integrated optical lens that narrows the viewing angle to 80°, minimizing crosstalk and enhancing on-axis intensity. This design facilitates effective light coupling into secondary optics like light guides and pipes.
The HSM8-C350 comes in an industrial-standard footprint of 3.2 mm x 1.6 mm and is compatible with automatic machine placement and reflow soldering processes. It has a DC forward current of 70mA and a forward voltage of 1.4V.
Key electrical characteristics include a radiant intensity of 3.4 mW/sr (min) at 20mA and a peak wavelength of 850nm. The operating temperature range is -40°C to +85°C, and it is packaged in a 2-SMD, No Lead configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength of the HSM8-C350 is 850 nm.
The radiant intensity ranges from 3.4 to 13 mW/sr.
The typical forward voltage is 1.4 V at 20 mA.
The operating temperature range is -40°C to 85°C.
It is packaged in a 2-SMD, no-lead surface mount package.
Yes, it is RoHS3 compliant.
