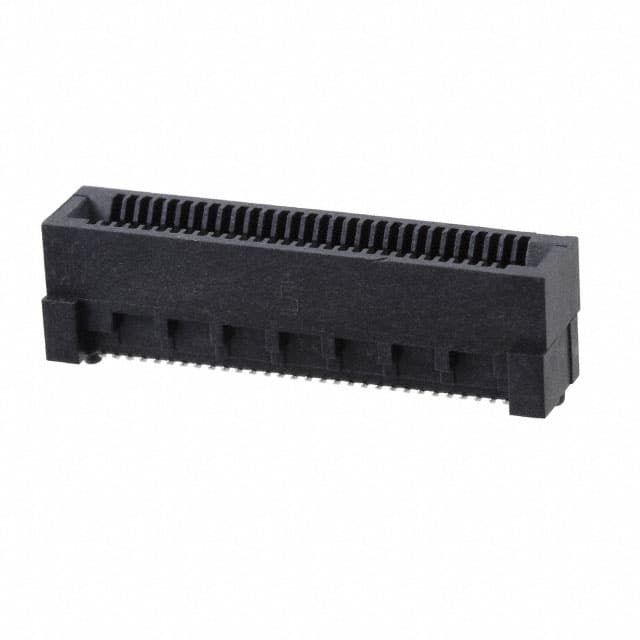

HSEC8-130-01-L-DV-A Samtec HSEC8-130-01-L-DV-A is a vertical edge card socket with 60 contacts (30 per row), 0.80mm pitch, and surface mount termination. It features beryllium copper cantilever contacts with gold plating and a black LCP insulator.
Mfr Part #:

HSEC8-130-01-L-DV-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec HSEC8-130-01-L-DV-A is a vertical edge card socket with 60 contacts (30 per row), 0.80mm pitch, and surface mount termination. It features beryllium copper cantilever contacts with gold plating and a black LCP insulator.
✓ Total Stock: 12 pcs
$ Price Range: $2.28 - $3.57

HSEC8-130-01-L-DV-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HSEC8-130-01-L-DV-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Current Rating
Features
Gender
Halogen Free
Insulator Material
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
SVHC Present
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

HSEC8-130-01-L-DV-A Description

Short technical summary and product information.

The Samtec HSEC8-130-01-L-DV-A is a high-speed edge card connector from the HSEC8 series. It is a vertical edge card socket with dual readout, providing 60 total contacts (30 per row) at a 0.80mm pitch. The connector is designed for surface mount soldering and accepts a card thickness of 0.062" (1.57mm).



Key specifications include beryllium copper cantilever contacts with 10.0µin gold plating, a black LCP insulator, and an operating temperature range of -55°C to 125°C. The electrical ratings are 2.8A typical per pin (2 pins powered) and 240VAC. The connector features a board guide and locking ramp for secure mating.



This connector is suitable for high-speed digital applications, supporting PCI Express 3.0/4.0/5.0/6.0 and up to 64 Gbps PAM4 performance. It is packaged in a tray and is lead-free solderable. RoHS3 compliance is indicated but unverified.

HSEC8-130-01-L-DV-A Quick Information

Product Type: Edge Card Connector
Series: HSEC8
Canonical Name: Samtec HSEC8 Series Edge Card Connector, Female, 60 Contacts, 0.80mm Pitch, Surface Mount, Dual Readout
Subcategory: Vertical Edge Card Socket

HSEC8-130-01-L-DV-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

HSEC8-130-01-L-DV-A Estimated Pricing

Qty Low High
1+ $3.57 $3.57
10+ $2.85 $2.85
50+ $2.83 $2.83
2,520+ $2.28 $2.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

HSEC8-130-01-L-DV-A Features

  • 60 positions with dual readout configuration.
  • 0.80mm pitch for high-density designs.
  • Beryllium copper cantilever contacts with gold plating.
  • Surface mount termination with solder.
  • Board guide and locking ramp for secure mating.

HSEC8-130-01-L-DV-A Applications

  • Used in high-speed edge card interconnect systems.
  • Suitable for PCI Express 3.0/4.0/5.0/6.0 applications.
  • Ideal for data communication and networking equipment.
  • Can be used in test and measurement devices.

HSEC8-130-01-L-DV-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the HSEC8-130-01-L-DV-A have?

It has 30 positions per row with dual readout, providing 60 total contacts.

What is the pitch of this connector?

0.80mm (0.031").

What is the current rating?

2.8 A typical (2 pins powered).

What is the voltage rating?

240 VAC.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Beryllium copper with 10.0µin gold plating.
