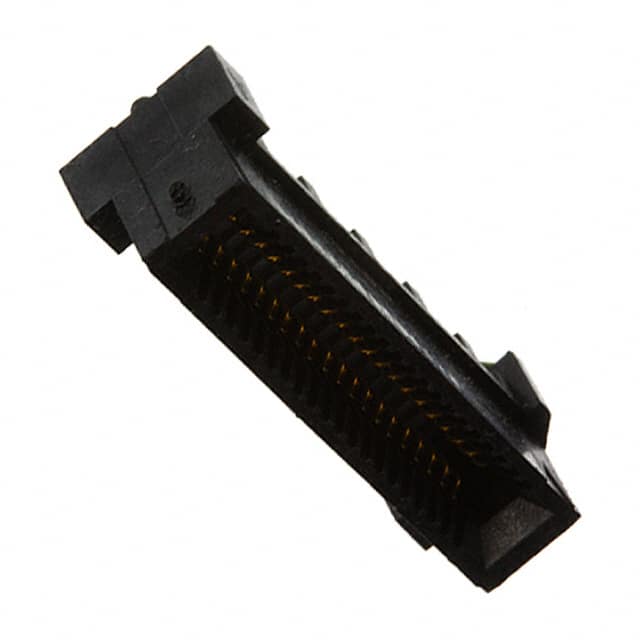

The Samtec HSEC8-120-01-SM-DV-A is a high-speed edge card connector part of the Generate® series. It features a 0.80mm pitch and a vertical orientation, designed for use with 1.60mm (.062") thick cards. The connector utilizes Samtec's Edge Rate® contact system for high mating cycles and 28 Gbps performance.
This connector has 120 positions across 2 rows, with female cantilever contacts made of beryllium copper, gold plated (30µin). It is rated for 2.8A maximum current per pin (2 pins powered) and 240VAC / 339VDC maximum voltage. The insulator is black LCP, and the operating temperature range is -55°C to +125°C.
It is surface mount with solder termination. The part is packaged in a tray with 84 units per tray. It is RoHS3 compliant and REACH unaffected, with MSL level 1.
This connector is suitable for high-speed data applications requiring up to 28 Gbps NRZ performance, including PCIe 4.0/5.0, SAS, and other protocols. It is ideal for use in servers, networking equipment, and test and measurement devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.53 | $4.53 |
| 84+ | $4.29 | $4.29 |
| 252+ | $3.84 | $3.84 |
| 504+ | $3.27 | $3.27 |
| 1,008+ | $3.01 | $3.01 |
| 2,520+ | $2.84 | $2.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
0.80mm (0.031in).
2.8A maximum per pin (2 pins powered).
240VAC / 339VDC maximum.
Surface mount.
Gold, 0.76µm (30µin).
-55°C to +125°C.
