| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Max) | |
| Data Rate | |
| Features | |
| Gender | |
| Halogen Free | |
| Insulator Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Read Out | |
| SVHC Present | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Voltage Rating (max) |

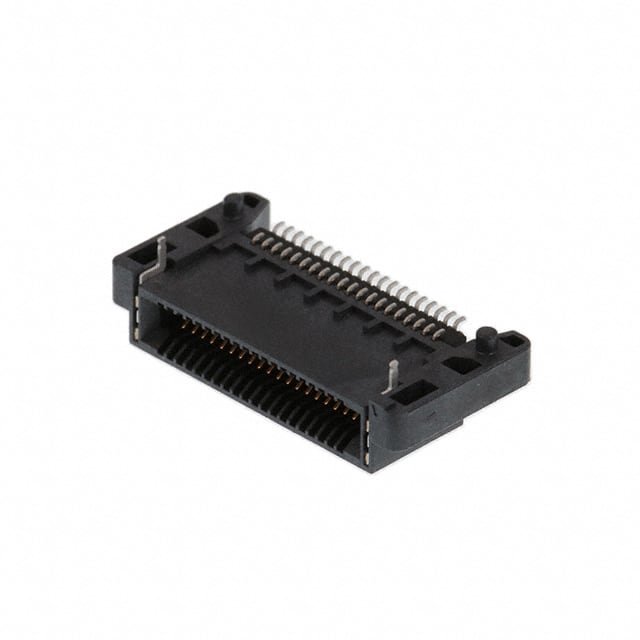

The Samtec HSEC8-120-01-L-RA-TR is a high-speed edge card connector from the Generate series, featuring a 0.80mm pitch and 40 positions arranged in two rows. This female connector is designed for right-angle surface mount attachment, making it suitable for compact, high-density PCB layouts. The contacts are made of beryllium copper with 10 µ" gold plating on the contact area and matte tin on the tails, ensuring reliable signal integrity and durability.
Electrical performance includes a current rating of 2.6 A max (per manufacturer page) and a voltage rating of 175 VAC / 247 VDC. The connector supports data rates up to 28 Gbps NRZ, making it ideal for high-speed protocols such as PCIe 4.0, USB 3.2, and 10/25/50 GbE. The operating temperature range is -55°C to 125°C, and the insulator is molded from black Liquid Crystal Polymer (LCP).
The connector includes a board guide feature for easy alignment during assembly. It is packaged in Tape & Reel with a standard quantity of 250 pieces per reel. The HSEC8-RA series is compatible with 1.60 mm (0.062") thick daughter cards and can be used with Samtec's ECDP cable system for wire-to-board applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.57 | $8.57 |
| 10+ | $7.29 | $7.29 |
| 25+ | $6.83 | $6.83 |
| 50+ | $6.51 | $6.51 |
| 100+ | $5.73 | $5.73 |
| 250+ | $5.55 | $5.55 |
| 500+ | $4.95 | $4.95 |
| 1,000+ | $4.40 | $4.40 |
| 2,000+ | $4.05 | $4.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 20 positions total (dual row, 10 per row) according to the database specification.
The pitch is 0.80 mm (0.031 inches).
The maximum current rating is 2.6 A per manufacturer page.
The maximum voltage rating is 175 VAC / 247 VDC.
The connector is surface mount, right angle.
The operating temperature range is -55°C to 125°C.
It supports data rates up to 28 Gbps NRZ.
