| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
432 pcs
|
432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
432 pcs
|
432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Features | |
| Gender | |
| Halogen Free | |
| Insulator Material | |
| Maximum Data Rate (Maximum @ NRZ) | |
| Maximum Data Rate (Maximum @ PAM 4) | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Read Out | |
| SVHC Present | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Voltage Rating (Maximum @ AC) | |
| Voltage Rating (Maximum @ DC) |

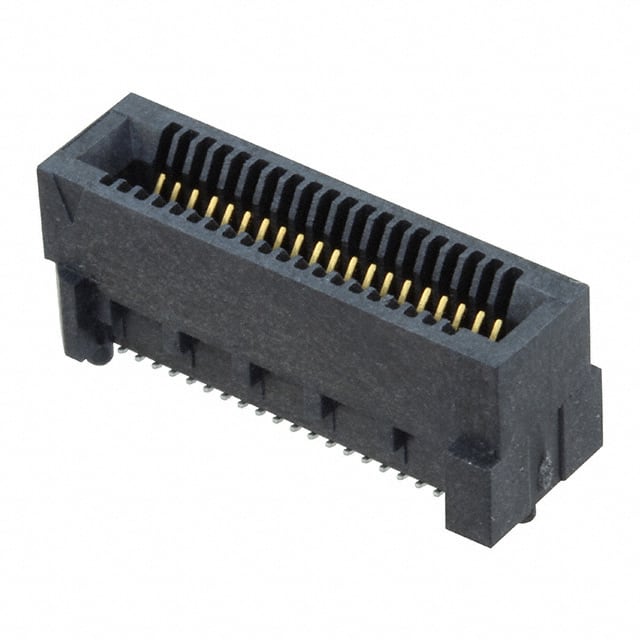

Samtec HSEC8-120-01-L-DV-A-K-TR is a vertical edge card socket from the HSEC8 series. It has 20 positions per row (40 total) with dual readout, 0.80mm pitch, and is designed for 1.60mm thick cards. Contacts are beryllium copper with 10µ" gold plating, and the insulator is black LCP.
The connector supports up to 2.8A per contact (2 pins powered) and 240 VAC / 339 VDC maximum. It delivers up to 28 Gbps NRZ and 64 Gbps PAM4 performance, suitable for high-speed protocols including PCI Express 3.0/4.0/5.0/6.0. Features include a board guide and locking ramp for secure mating.
Mounting is surface mount with solder termination. Packaging is Tape & Reel with 275 parts per reel. Operating temperature range is -55°C to 125°C. The part is RoHS3 compliant and lead-free solderable, with MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.98 | $3.98 |
| 10+ | $3.14 | $3.14 |
| 50+ | $2.95 | $2.95 |
| 100+ | $2.81 | $2.81 |
| 275+ | $2.58 | $2.58 |
| 825+ | $1.94 | $1.94 |
| 2,475+ | $1.64 | $1.64 |
| 4,950+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions per row with 2 rows, totaling 40 positions.
The pitch is 0.80mm (0.031").
The maximum current rating is 2.8 A (2 pins powered).
The maximum voltage ratings are 240 VAC and 339 VDC.
Surface mount.
It supports up to 28 Gbps NRZ and up to 64 Gbps PAM4.
The operating temperature range is -55°C to 125°C.
