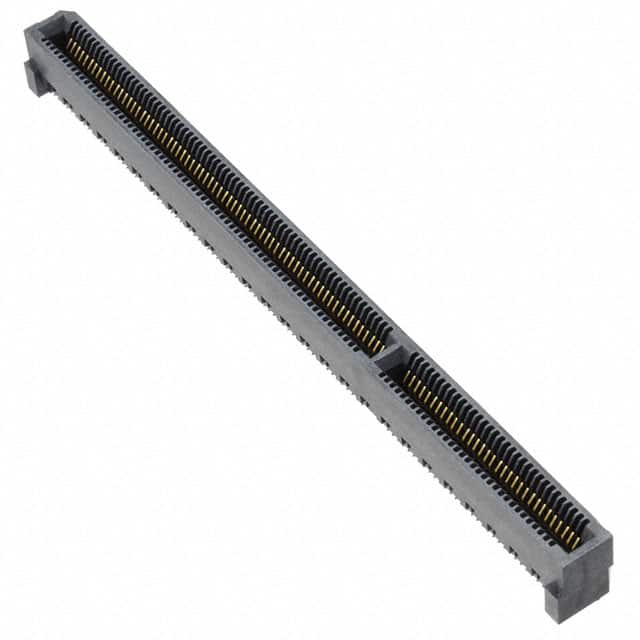

The Samtec HSEC8-1100-01-L-DV-A-K is a high-speed edge card socket from the HSEC8 series. It features 200 total positions arranged in two rows of 100, with a 0.80mm pitch. The connector is designed for surface mount soldering onto a 1.57mm thick PCB and supports dual readout.
Key specifications include gold-plated beryllium copper cantilever contacts rated for 2.8A per pin (with 2 pins powered) and 240VAC. The insulator is black liquid crystal polymer (LCP), and the operating temperature range is -55°C to 125°C. The part includes a board guide and locking ramp for secure mating and alignment.
This connector is suitable for high-speed edge card applications supporting PCI Express 3.0, 4.0, 5.0, and 6.0, as well as data rates up to 64 Gbps PAM4. It is lead-free solderable and compatible with RoHS requirements (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $9.46 | $9.46 |
| 10+ | $8.39 | $8.39 |
| 28+ | $7.91 | $7.91 |
| 56+ | $7.61 | $7.61 |
| 112+ | $6.74 | $6.74 |
| 252+ | $6.28 | $6.28 |
| 1,008+ | $6.23 | $6.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 200 total positions arranged in two rows of 100 positions per row.
The pitch is 0.80mm (0.031 inches).
The current rating is 2.8A per pin when 2 pins are powered (nominal, from series datasheet).
The voltage rating is 240 VAC (nominal, from series datasheet).
The connector is surface mount with solder termination.
The operating temperature range is -55°C to 125°C.
The contact material is beryllium copper with gold plating (0.25µm).
