Mfr Part #:

HSE-B20254-040H

Name: HSE-B20254-040H
Brand: CUI Devices
SKU: HSE-B20254-040H

Mfr Name: CUI Devices

Description:

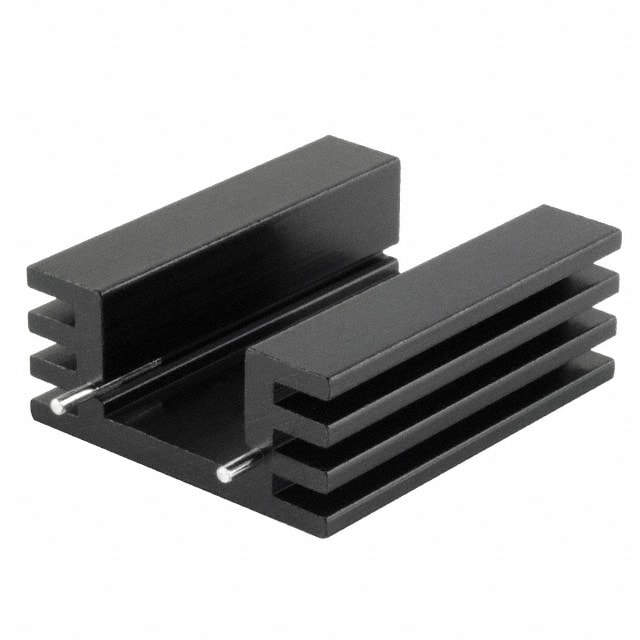

HEAT SINK, EXTRUSION, TO-220, 25

Stock on Request

HSE-B20254-040H Description

Short technical summary and product information.

HEAT SINK, EXTRUSION, TO-220, 25

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Heat Sinks
Manufacturer Name	CUI Devices
Attachment Method	Bolt On and PC Pin
Fin Height	0.551" (14.00mm)
Length	1.000" (25.40mm)
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	5.7W @ 75°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	7.74°C/W @ 200 LFM
Thermal Resistance @ Natural	13.16°C/W
Type	Board Level, Vertical
Width	1.260" (32.00mm)
