Mfr Part #:

HSDC-JAKIT1W2/DB

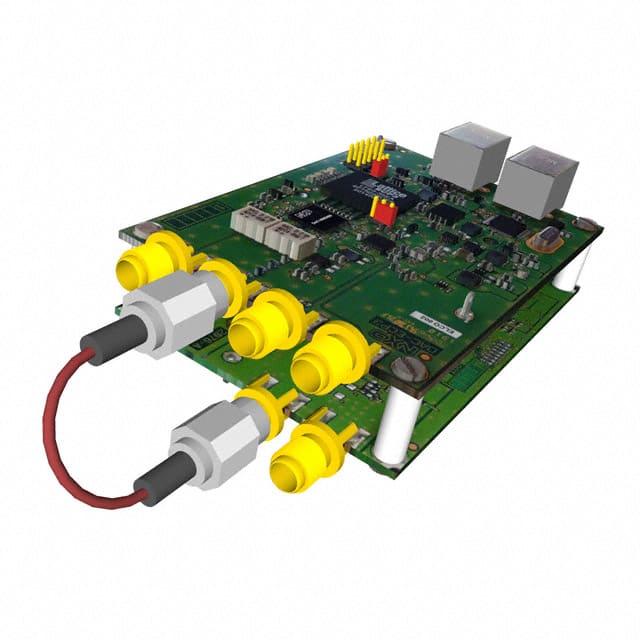

Name: HSDC-JAKIT1W2/DB
Brand: NXP Semiconductors
SKU: HSDC-JAKIT1W2/DB

Mfr Name: NXP Semiconductors

Description:

DAC/ADC LATTICE KIT

Stock on Request

HSDC-JAKIT1W2/DB Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Evaluation and Demonstration Boards and Kits
Manufacturer Name	NXP Semiconductors
Embedded	Yes, FPGA / CPLD
Function	ADC/DAC for Lattice ECP3 FPGA
Primary Attributes	Loop Back Demo with 2 High Speed Converters
Supplied Contents	Board(s), Cable(s)
Type	Interface
Utilized IC	ADC1413D, DAC1408D, ECP3 FPGA

Short technical summary and product information.

DAC/ADC LATTICE KIT

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected
