| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Lead Spacing | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Range | |
| Pressure Type | |
| Supplier Device Package | |
| Termination Style | |
| Voltage |

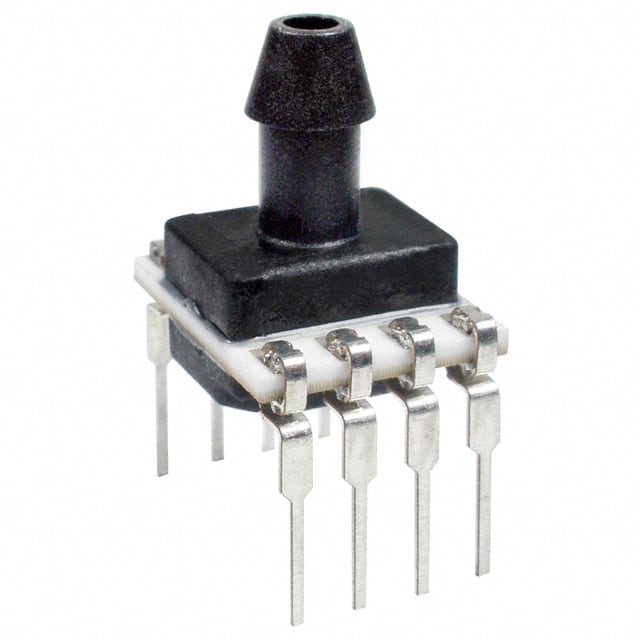

The Honeywell HSCDANN150PG2A5 is a high-accuracy, compensated, and amplified board mount pressure sensor from the TruStability® HSC Series. This sensor is designed to measure vented gauge pressure with an operating range of up to 150 PSI (1034.21 kPa) and a maximum pressure rating of 250 PSI (1723.69 kPa).
It offers a digital I²C output with 12-bit resolution and operates from a 4.75V to 5.25V supply. The sensor is temperature compensated and calibrated for accuracy, with a specified accuracy of ±0.25%FSS BFSL. The operating temperature range is -20°C to 85°C.
The HSCDANN150PG2A5 features a barbed port style with a 0.19" (4.93mm) tube size and is housed in an 8-DIP package with a top port. It is designed for through-hole mounting and has a PC pin termination style.
This sensor is suitable for applications involving non-corrosive, non-ionic gases and is manufactured according to ISO 9001 standards, ensuring stability and reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 150 PSI (1034.21 kPa).
It provides a 12-bit I²C digital output.
The accuracy is ±0.25%FSS BFSL.
The operating temperature range is -20°C to 85°C.
It is supplied in an 8-DIP package.
It is a through-hole mounted component.
