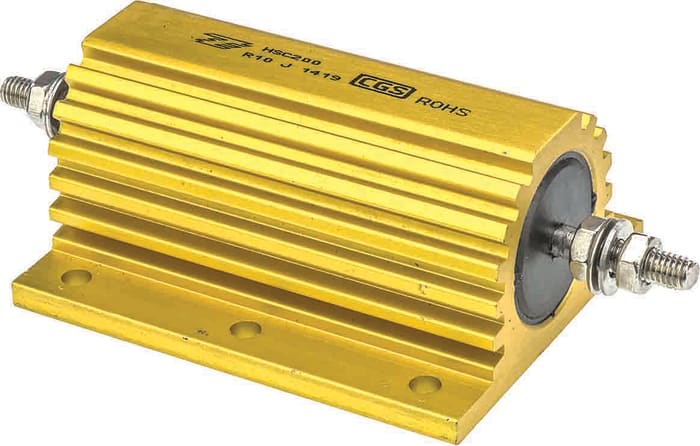

HSC200470RJ This TE Connectivity HSC200470RJ is a 470 Ohm, 200W wirewound chassis mount resistor with a ±5% tolerance. It features an aluminum housing for heat dissipation.
Mfr Part #:

HSC200470RJ

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity HSC200470RJ is a 470 Ohm, 200W wirewound chassis mount resistor with a ±5% tolerance. It features an aluminum housing for heat dissipation.
✓ Total Stock: 400 pcs
$ Price Range: $0.05

HSC200470RJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HSC200470RJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coating, Housing Type
Composition
Failure Rate
Height
Lead Style
Length
Mounting Feature
Mounting Type
Operating Temperature
Power (Watts)
Resistance
Technology
Temperature Coefficient
Termination Style
Tolerance
Width
View Similar Products (0)

HSC200470RJ Description

Short technical summary and product information.

The TE Connectivity HSC200470RJ is a high-power wirewound chassis mount resistor designed for demanding applications. It offers a resistance value of 470 Ohms with a tolerance of ±5% and a substantial power rating of 200W.



Constructed with a wirewound element and housed in aluminum, this resistor is built for efficient heat dissipation and durability. Its operating temperature range is -55°C to 200°C, making it suitable for various environmental conditions. The resistor is designed for chassis mounting, utilizing flanges for secure attachment.



Key specifications include a ±30 ppm/°C temperature coefficient and dimensions of 90.00mm in length and 73.00mm in width. This component is ideal for applications requiring robust power handling and thermal stability.

HSC200470RJ Quick Information

Product Type: Chassis Mount Resistor
Series: HSC200
Canonical Name: TE Connectivity HSC200470RJ 470 Ohm 200W Wirewound Chassis Mount Resistor
Subcategory: Chassis Mount Resistor

HSC200470RJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HSC200470RJ Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

HSC200470RJ Features

  • 470 Ohm resistance with ±5% tolerance.
  • 200W power rating for high-demand applications.
  • Wirewound element for reliable performance.
  • Aluminum housing for effective heat dissipation.
  • Chassis mount design with flanges.

HSC200470RJ Applications

  • Suitable for braking resistor applications.
  • Used for balancing resistor circuits.
  • Applicable for capacitor charging/discharging.
  • Can be used as a crowbar protection.
  • Ideal for general electrical machinery use.

HSC200470RJ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TE Connectivity HSC200470RJ resistor?

The resistance value is 470 Ohms.

What is the power rating of the HSC200470RJ resistor?

The power rating is 200W.

What is the tolerance of the TE Connectivity HSC200470RJ resistor?

The tolerance is ±5%.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 200°C.

What type of resistor construction does the HSC200470RJ use?

It uses a wirewound construction.

How is the HSC200470RJ resistor mounted?

It is designed for chassis mounting and features flanges.
