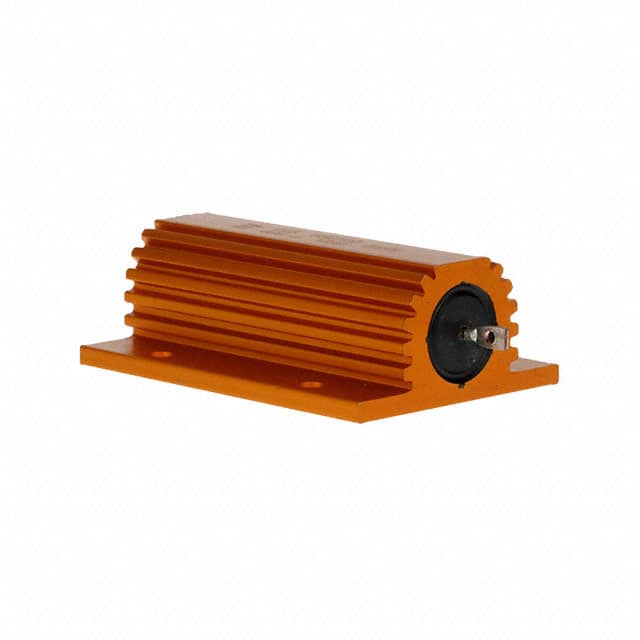

HSC1006R8J The HSC1006R8J is a chassis mount resistor with a resistance of 6.8Ω, 5% tolerance, and a power rating of 100W. It features wirewound technology and is housed in an aluminum case with flanges for mounting.
Mfr Part #:

HSC1006R8J

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The HSC1006R8J is a chassis mount resistor with a resistance of 6.8Ω, 5% tolerance, and a power rating of 100W. It features wirewound technology and is housed in an aluminum case with flanges for mounting.
✓ Total Stock: 500 pcs
$ Price Range: $0.05

HSC1006R8J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HSC1006R8J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coating, Housing Type
Composition
Height
Lead Style
Length
Mounting Feature
Mounting Type
Operating Temperature
Power (Watts)
Resistance
Technology
Temperature Coefficient
Termination Style
Tolerance
Width
View Similar Products (0)

HSC1006R8J Description

Short technical summary and product information.

The HSC1006R8J is a chassis mount resistor manufactured by TE Connectivity. It has a resistance value of 6.8Ω with a tolerance of ±5%. The resistor is rated for 100W power dissipation and features a wirewound construction, suitable for high power applications. Its operating temperature range extends from -55°C to 200°C, making it suitable for demanding thermal environments. The resistor is housed in an aluminum case with flanges for secure mounting and has termination styles compatible with solder lug connections. Its mechanical dimensions include a height of 26mm, length of 65.5mm, and width of 47.5mm, ensuring compatibility with chassis mounting configurations.

HSC1006R8J Quick Information

Product Type: Chassis Mount Resistor
Canonical Name: Resistor, 6.8Ω, 5% Tolerance, 100W Power, Wirewound Technology

HSC1006R8J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HSC1006R8J Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

HSC1006R8J Features

  • 6.8Ω resistance with ±5% tolerance.
  • 100W high power wirewound resistor.
  • Aluminum housing for durability and heat dissipation.
  • Chassis mount design with solder lug termination.
  • Operates within -55°C to 200°C temperature range.

HSC1006R8J Applications

  • Suitable for high-power resistor applications.
  • Used in braking and balancing circuits.
  • Ideal for capacitor charging and discharging.
  • Suitable for electrical machinery and industrial use.
  • Designed for chassis mounting in high-temperature environments.

HSC1006R8J FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the HSC1006R8J?

The resistance value of the HSC1006R8J is 6.8Ω.

What is the power rating of this resistor?

The power rating of the HSC1006R8J is 100W.

What is the tolerance of the resistor?

The tolerance of the HSC1006R8J is ±5%.

What is the operating temperature range?

The operating temperature range is from -55°C to 200°C.

What is the housing material of the resistor?

The housing is made of aluminum.

What mounting features does this resistor have?

It features flange mounting for chassis installation.

Is this resistor RoHS compliant?

It is RoHS3 compliant, but the status is unverified.
