| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
340 pcs
|
340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coating, Housing Type | |
| Composition | |
| Failure Rate | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Feature | |
| Mounting Type | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

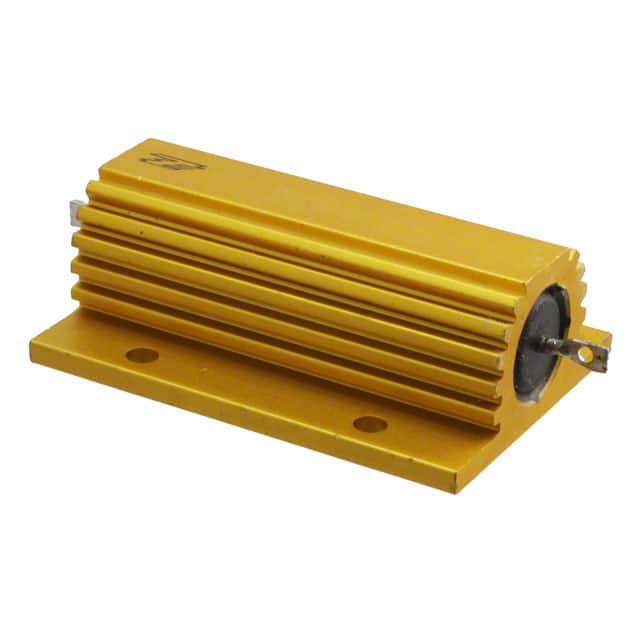

This TE Connectivity HSC100100RJ is a high-power wirewound chassis mount resistor designed for demanding applications. It offers a resistance value of 100 Ohms with a tight tolerance of ±5% and a substantial power rating of 100W.
The resistor utilizes a wirewound element for reliable performance and features an aluminum housing, contributing to effective heat management. Its operating temperature range extends up to 250°C, making it suitable for environments with elevated thermal conditions.
With a solder lug termination style and chassis mounting capability, this component is designed for secure and robust integration into electrical systems. Its dimensions are 65.50mm in length, 47.50mm in width, and 26.00mm in height.
Applications for this versatile resistor include braking, balancing, capacitor charging and discharging, crowbar circuits, filters, and general use in electrical machinery.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The power rating is 100W.
The tolerance is ±5%.
The operating temperature range is -55°C to 200°C.
It has a wirewound composition.
The dimensions are 65.50mm in length, 47.50mm in width, and 26.00mm in height.
