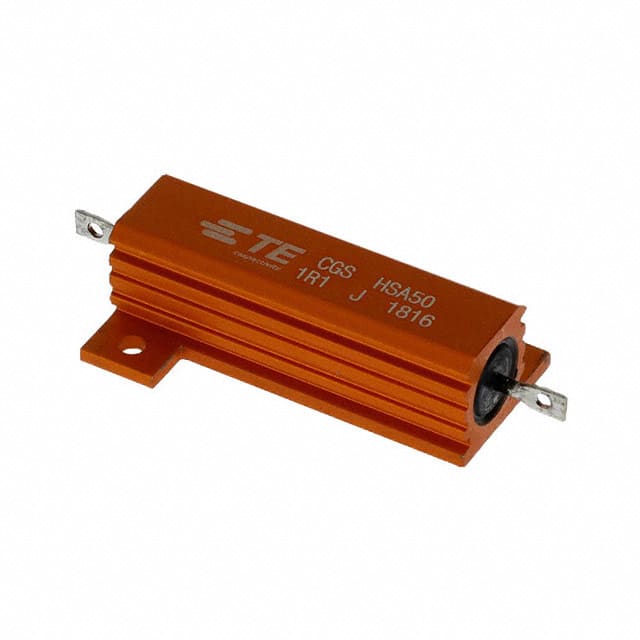

HSA501R1J The TE Connectivity HSA501R1J is a wirewound resistor designed for chassis mounting. It offers a resistance of 1.1 Ohms with a 5% tolerance and a power rating of 50W.
Mfr Part #:

HSA501R1J

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity HSA501R1J is a wirewound resistor designed for chassis mounting. It offers a resistance of 1.1 Ohms with a 5% tolerance and a power rating of 50W.
✓ Total Stock: 3 pcs
$ Price Range: $0.05

HSA501R1J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 1635 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HSA501R1J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coating, Housing Type
Composition
Failure Rate
Height
Lead Style
Length
Mounting Feature
Mounting Type
Operating Temperature
Power (Watts)
Resistance
Temperature Coefficient
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

HSA501R1J Description

Short technical summary and product information.

The TE Connectivity HSA501R1J is a wirewound resistor specifically designed for chassis mounting applications. This component features a resistance value of 1.1 Ohms with a tolerance of ±5%, ensuring reliable performance in demanding environments. It is rated for a power dissipation of 50W, making it suitable for applications requiring significant power handling capabilities.



The resistor operates within a temperature range of -55°C to 200°C and has a voltage rating of 1.25 kV. Its construction utilizes a wirewound technology with an aluminum housing, providing durability and efficient heat dissipation. The dimensions are 51mm in length, 30mm in width, and 17mm in height, with solder lug termination for secure connections.



This chassis mount resistor is built with a ±50ppm/°C temperature coefficient, contributing to its stability across varying temperatures. The HSA501R1J is categorized under passive components, specifically wirewound resistors, and is designed for robust integration into electronic systems where thermal management and power handling are critical.

HSA501R1J Quick Information

Product Type: Wirewound Resistor
Series: Hsa
Canonical Name: TE Connectivity HSA501R1J Wirewound Resistor - Chassis Mount
Subcategory: Chassis Mount Resistor

HSA501R1J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HSA501R1J Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

HSA501R1J Features

  • Wirewound construction for power handling.
  • Chassis mount design with aluminum housing.
  • 1.1 Ohm resistance with 5% tolerance.
  • Rated for 50W power dissipation.
  • Operates from -55°C to 200°C.

HSA501R1J Applications

  • Suitable for high power applications.
  • Used in systems requiring chassis mounting.
  • Ideal for thermal management needs.
  • Reliable in wide temperature ranges.

HSA501R1J FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the HSA501R1J resistor?

The resistance value of the HSA501R1J resistor is 1.1 Ohms.

What is the power rating of the HSA501R1J resistor?

The power rating of the HSA501R1J resistor is 50W.

What is the tolerance of the HSA501R1J resistor?

The tolerance of the HSA501R1J resistor is ±5%.

What is the operating temperature range for the HSA501R1J resistor?

The operating temperature range for the HSA501R1J resistor is -55°C to 200°C.

How is the HSA501R1J resistor mounted?

The HSA501R1J resistor is designed for chassis mounting.
