| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Grade | |
| Mounting Type | |
| Reverse Recovery Time (trr) | |
| Speed |
The HS2JH from Taiwan Semiconductor Corporation is a high efficient rectifier diode designed for demanding applications. It offers a maximum reverse voltage of 600V and can handle an average rectified current of 2A. The diode boasts a fast recovery time of 75ns, making it suitable for high-frequency switching applications.
This component features a low forward voltage drop of 1.7V at 2A and a low reverse leakage current of 5µA at 600V. Its junction capacitance is rated at 30pF at 4V and 1MHz. The HS2JH is qualified under AEC-Q101 for automotive applications, indicating its reliability and robustness.

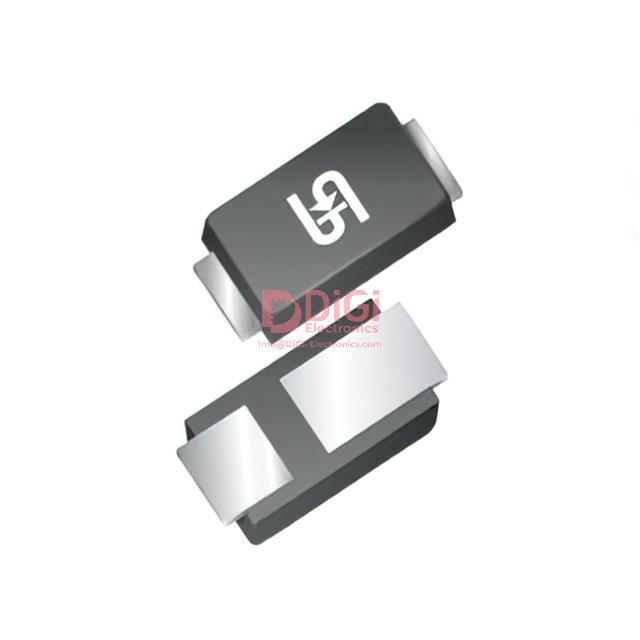

Packaged in a standard DO-214AA (SMB) surface mount case, the HS2JH is designed for easy integration into printed circuit boards. It is supplied in tape and reel packaging for automated assembly processes. This rectifier is an excellent choice for power supply circuits, inverters, and other power management systems requiring efficient rectification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (Vr) for the HS2JH is 600V.
The HS2JH has an average rectified current (Io) rating of 2A.
The maximum forward voltage (Vf) for the HS2JH is 1.7V when the forward current (If) is 2A.
The reverse recovery time (trr) for the HS2JH is 75ns.
The HS2JH is supplied in a DO-214AA (SMB) package for surface mounting.
Yes, the HS2JH is qualified under AEC-Q101, making it suitable for automotive applications.
