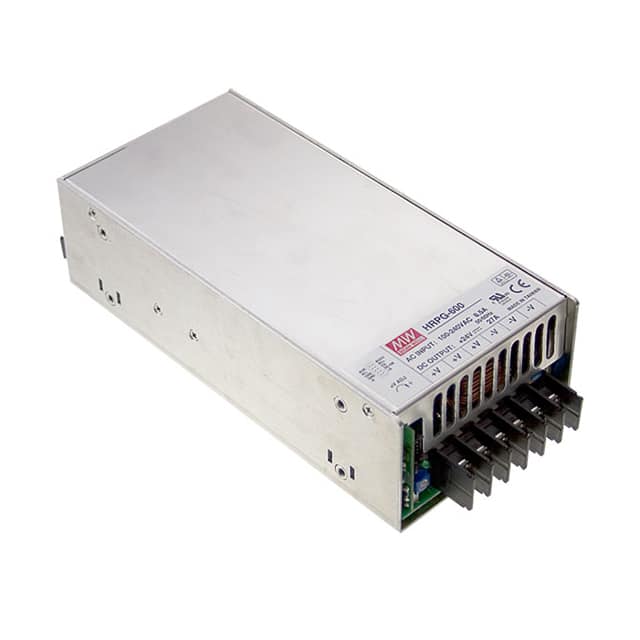

The Mean Well USA HRPG-600-12 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 12V output voltage at a rated current of 53A, delivering a total power of 636W.
Key electrical features include a universal AC input range of 85-264VAC, a built-in active PFC function, and overload protection with constant current limiting. It also offers features like adjustable output, load sharing, remote ON/OFF control, and a 5V standby output.
Mechanically, the unit is chassis mountable with dimensions of 8.58 x 4.13 x 2.5 inches and weighs 3.48 lbs. It operates within a temperature range of -40°C to +70°C with derating and utilizes forced air cooling via a built-in DC fan.
Safety certifications include CB, CE, cURus, and TUV, with a withstand voltage rating of 3kVAC for I/P-O/P. The converter comes with a 5-year warranty.
85~264VAC or 120~370VDC.
-40°C to +70°C with derating.
Enclosed, chassis mount.
Short circuit, overload, over voltage, over temperature.
12V, 53A.
Yes, ±15%.
5 years.
