| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

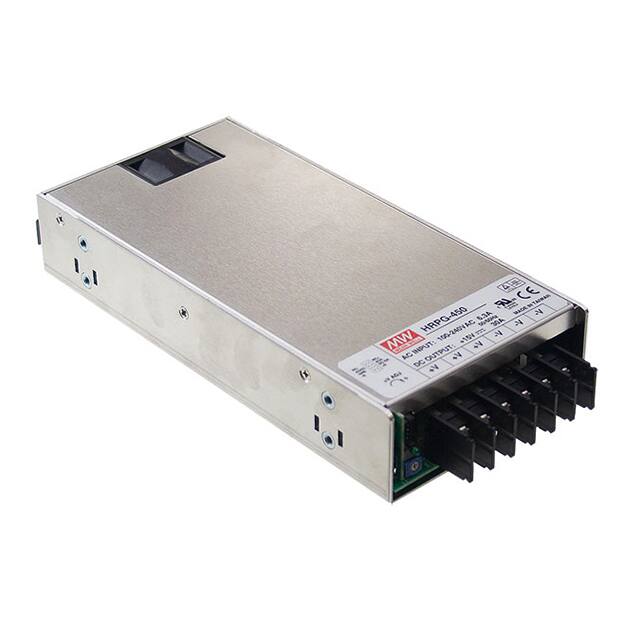

The Mean Well USA HRPG-450-12 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a power output of 450W with a single output voltage and a current rating of 37.5A.
Key electrical features include adjustable output, Power Factor Correction (PFC), remote on/off, and remote sense capabilities, along with a universal input voltage range. The converter operates efficiently at 88% and offers a wide operating temperature range from -40°C to 70°C, with derating.
Mechanically, this unit is designed for chassis mounting and has dimensions of 218.0mm in length, 105.0mm in width, and 41.0mm in height. It has undergone testing and approval by agencies such as CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards.
-40°C to 70°C with derating.
12V DC.
1 output.
88% typical.
CB, CE, cURus, TUV.
Chassis Mount.
218.0 x 105.0 x 41.0 mm.
