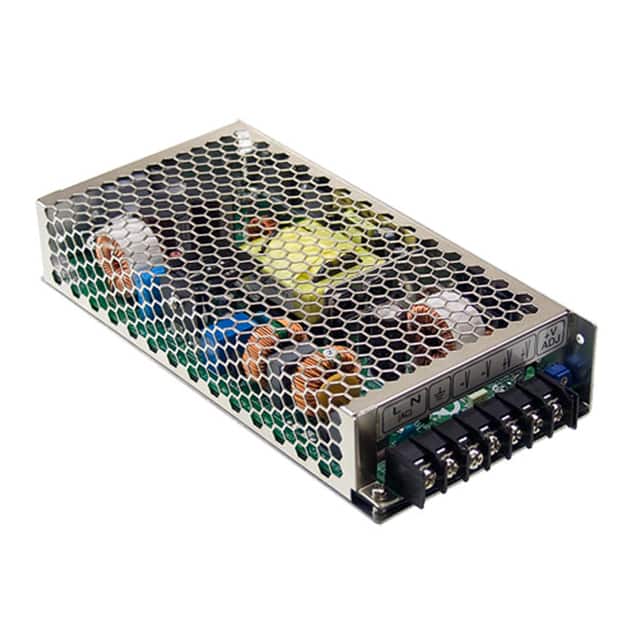

The Mean Well USA HRPG-200-24 is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It delivers 202W of power with a current output of 8.4A and features adjustable output, power factor correction (PFC), remote on/off, and remote sense functionalities.
This converter offers a 3kV isolation voltage and operates within a temperature range of -40°C to 70°C with derating. Its chassis mount type makes it suitable for various integration needs. The unit boasts an efficiency of 88% and universal input.
Key specifications include dimensions of 199.0mm x 98.0mm x 38.0mm. It is certified by CB, CE, cURus, and TUV approval agencies, indicating compliance with international safety standards.
The HRPG-200-24 has a power output of 202W.
The current rating for the HRPG-200-24 is 8.4 A.
The HRPG-200-24 uses chassis mount.
The operating temperature range is -40°C to 70°C (With Derating).
Key features include adjustable output, PFC, remote on/off, remote sense, and universal input.
The isolation voltage is 3 kV.
