| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Voltage - Isolation | |
| Width |

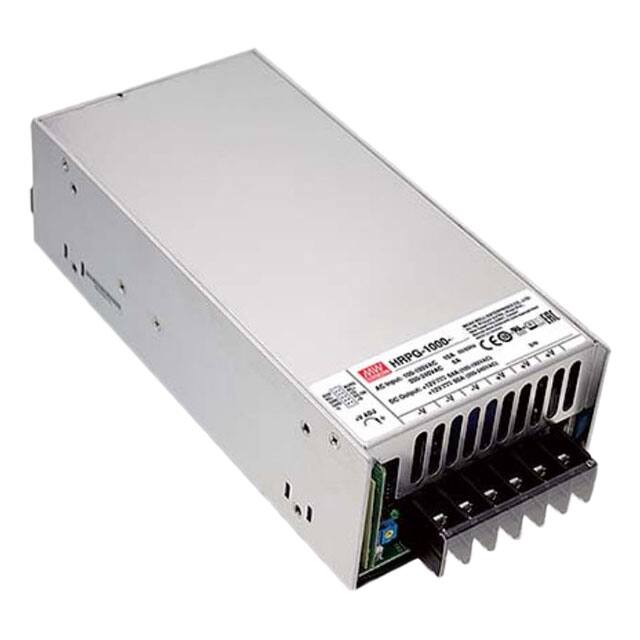

The Mean Well USA HRPG-1000-24 is an enclosed AC DC converter from the HRPG-1000 series, designed for ITE (Commercial) applications. It delivers a robust 1008W of power with a single 24VDC output.
This converter operates with a universal input voltage range of 90 to 264 VAC, ensuring compatibility across various power grids. It boasts a high efficiency of 93% and includes features such as adjustable output, PFC, remote on/off, and remote sense capabilities.
The unit is designed for chassis mounting and has a compact yet sturdy enclosed construction. Its operating temperature range is -40°C to 70°C, with derating applied at higher temperatures. The power supply has undergone rigorous testing and holds approvals from CB, CE, cURus, EAC, and TUV.
Key electrical specifications include a current rating of 42A and an isolation voltage of 3 kV. The physical dimensions are 218.0mm in length, 105.0mm in width, and 63.5mm in height.
The output voltage is 24VDC.
The input voltage range is 90 to 264 VAC.
The maximum power output is 1008W.
The operating temperature range is -40°C to 70°C (With Derating).
Key features include Adjustable Output, PFC, Remote On/Off, Remote Sense, and Universal Input.
Approval agencies include CB, CE, cURus, EAC, and TUV.
The dimensions are 218.0mm in length, 105.0mm in width, and 63.5mm in height.
