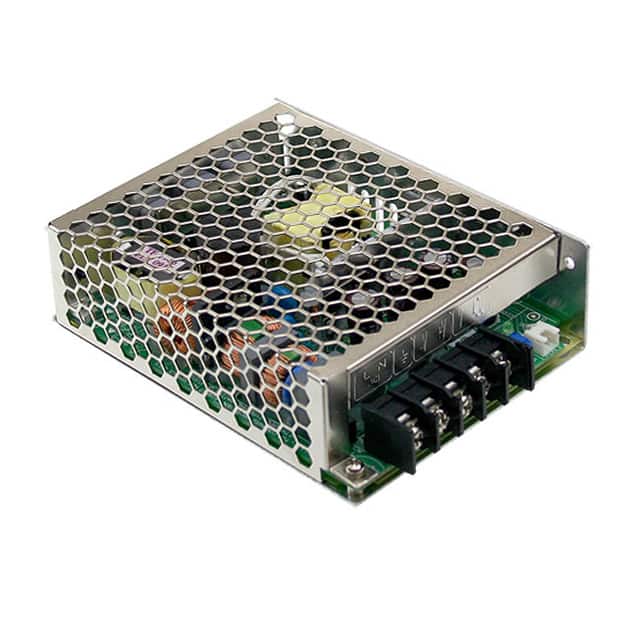

The Mean Well USA HRP-75-5 is an enclosed AC DC converter designed for various applications. It features a 5V DC output voltage with a rated current of 15A, providing a rated power of 49.5W. The unit operates with a universal input voltage range of 85 to 264 VAC and a frequency range of 47 to 63 Hz.
This converter boasts an efficiency of 82.5% and includes features such as adjustable output, power factor correction (PFC), remote on/off control, and universal input. It has a withstand voltage of 3 kV and is suitable for ITE (Commercial) applications.
Mechanically, the HRP-75-5 is designed for chassis mounting with dimensions of 129.0mm in length, 98.0mm in width, and 38.0mm in height. The operating temperature range is from -40°C to 70°C, with derating applied. It also has a working temperature range of -20°C to 60°C and a working humidity range of 20% to 90% non-condensing.
Compliance is met with approvals from CB, CE, cURus, and TUV. The unit has a leakage current of less than 0.5mA and a hold-up time of 16ms.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 129.0mm in length, 98.0mm in width, and 38.0mm in height.
The DC voltage is 5V and the rated current is 15A.
The rated power is 49.5W.
The voltage range is 85 ~ 264 VAC.
The approval agencies are CB, CE, cURus, TUV.
The efficiency is 82.5%.
