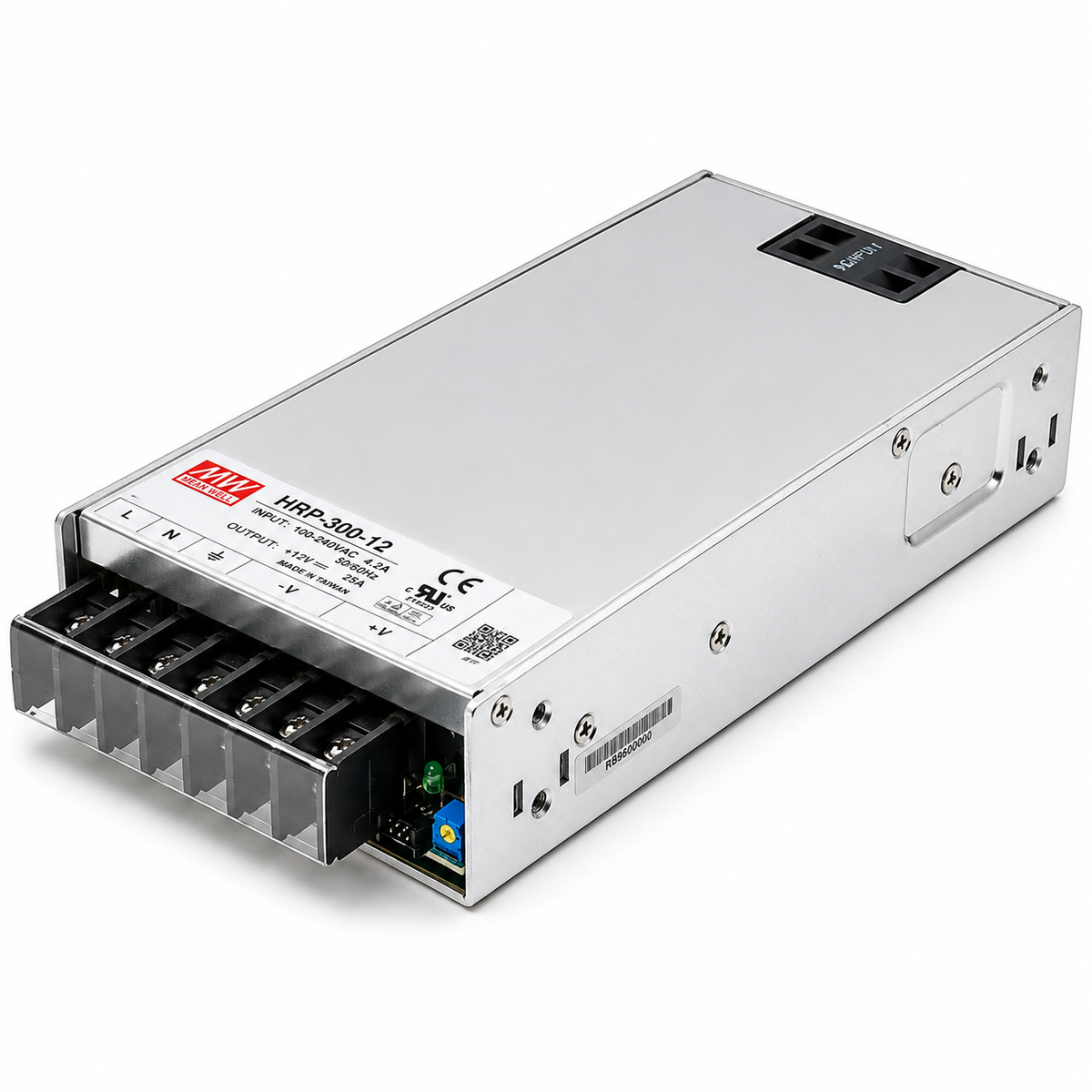

The Mean Well USA HRP-300-12 is a versatile AC/DC converter designed for various applications. It operates with a universal AC input range of 85-264VAC and offers a stable 12V DC output.
This converter boasts a rated power of 324W and a maximum current of 27A. Key electrical features include active Power Factor Correction (PFC) with a typical power factor greater than 0.95 at 230VAC, and high efficiency up to 89%. It includes protections for short circuit, overload, over voltage, and over temperature.
The HRP-300-12 is built with a low profile of 41mm and designed for chassis mounting. It operates within a wide temperature range of -40°C to +70°C and includes a built-in cooling fan with ON-OFF control. Additional features include a DC OK signal and a remote sense function, along with a 5-year warranty.
Compliance includes UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, and EAC TP TC 004 safety standards. EMC compliance includes BS EN/EN55032 Class B and EN61000-4-2,3,4,5,6,8,11.
The AC input voltage range is 85 to 264 VAC, and the DC input range is 120 to 370 VDC.
-40 to +70°C with derating.
The unit measures 199mm x 105mm x 41mm and is designed for chassis mount with an enclosed type.
Yes, the output voltage is adjustable from 10.2 to 13.8V.
Typical efficiency is up to 89%.
Overload protection at 105-135% rated output power, over voltage protection at 3.96-4.62V, and over temperature protection with auto recovery.
MTBF is 199,000 hours.
