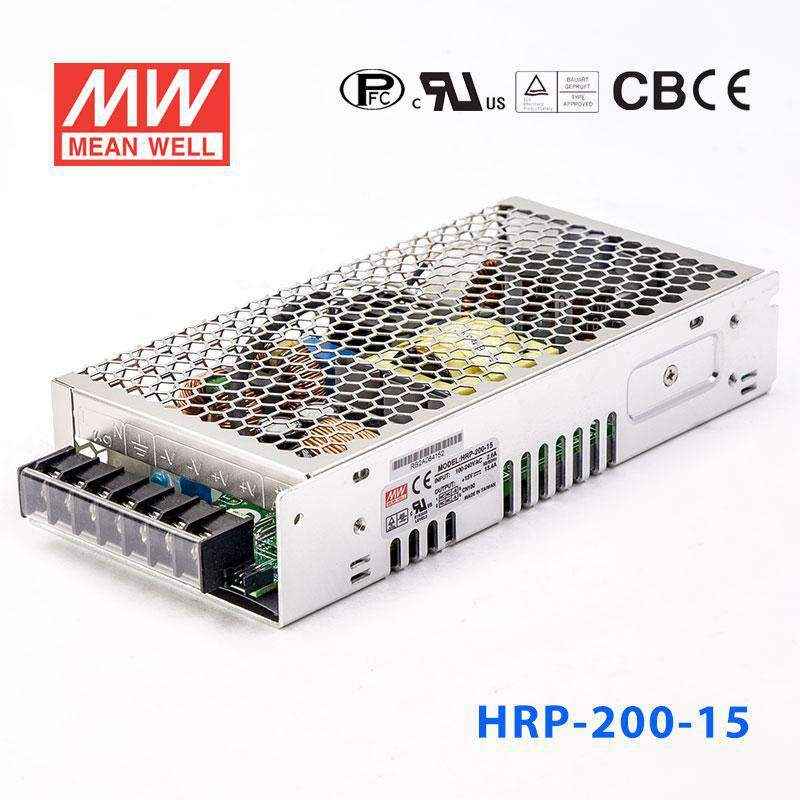

The Mean Well HRP-200-15 is an enclosed AC/DC power supply designed for industrial applications. It offers a rated power of 201W and a stable 15V output voltage with a current rating of 13.4A.
This converter accepts a wide input voltage range of 85-264VAC and features a power factor greater than 0.95 at 230VAC. Key electrical specifications include a voltage tolerance of ±1.0%, line regulation of ±0.2%, and load regulation of ±0.5%. It also includes protections for overload, over voltage, and over temperature.
The HRP-200-15 has a compact, low-profile design with dimensions of 199.0mm x 98.0mm x 38.0mm, suitable for chassis mounting. It operates within a temperature range of -40°C to 70°C and is cooled by free air convection. The unit is compliant with various safety and EMC standards, including UL60950-1 and EN55032 Class B.
The output voltage is 15V.
The rated current is 13.4A.
The input voltage range is 85-264VAC or 120-370VDC.
The dimensions are 199.0mm x 98.0mm x 38.0mm.
The operating temperature range is -40°C to 70°C.
It complies with UL60950-1 and TUV EN60950-1.
It complies with BS EN/EN55032 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, BS EN/EN61000-4-2,3,4,5,6,8,11, and BS EN/EN55035.
