| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,166 pcs
|
5166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attenuation Value | |
| Frequency Range | |
| Halogen Free | |
| Impedance | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Supply Current | |
| Tape & Reel |
The Honeywell HRF-AT4610-FL-TR is a 6-bit digital attenuator designed for broadband communication systems requiring accuracy, speed, and low power consumption. Manufactured using Honeywell's Silicon On Insulator (SOI) CMOS technology, it offers GaAs performance with CMOS integration capabilities.
This attenuator operates over a frequency range of DC to 4GHz with a maximum attenuation value of 31.5dB and a standard impedance of 50 Ohms. Key electrical specifications include typical insertion loss of 2.9dB at 1.0GHz, rising to 5.8dB at 4.0GHz. It also provides a 1dB compression point of 24dBm at 2.0GHz (VSS=0V) and an input IP3 of 38dBm (VSS=0V).

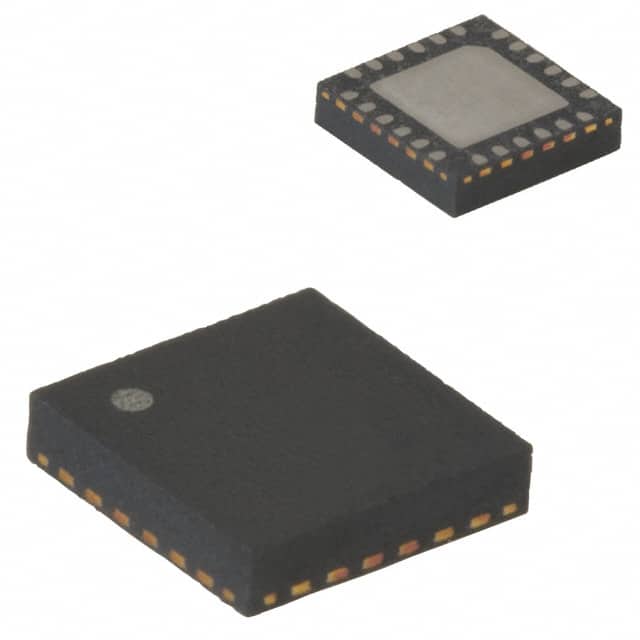

The device features a parallel data interface and is DC-coupled for improved lower operating frequency performance. It is supplied in a space-saving 24-VQFN exposed pad surface mount package. The operating temperature range is -40°C to +85°C.
This attenuator is suitable for applications demanding precise signal level control, such as wireless infrastructure, test and measurement equipment, and radar systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum attenuation value is 31.5dB.
The frequency range is DC to 4GHz.
The typical insertion loss at 1.0 GHz is 2.9 dB.
The impedance is 50 Ohms.
It is supplied in a 24-VQFN Exposed Pad package for surface mounting.
The operating temperature range is -40°C to +85°C.
The RoHS status is RoHS3 Compliant.
