| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
156 pcs
|
156 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

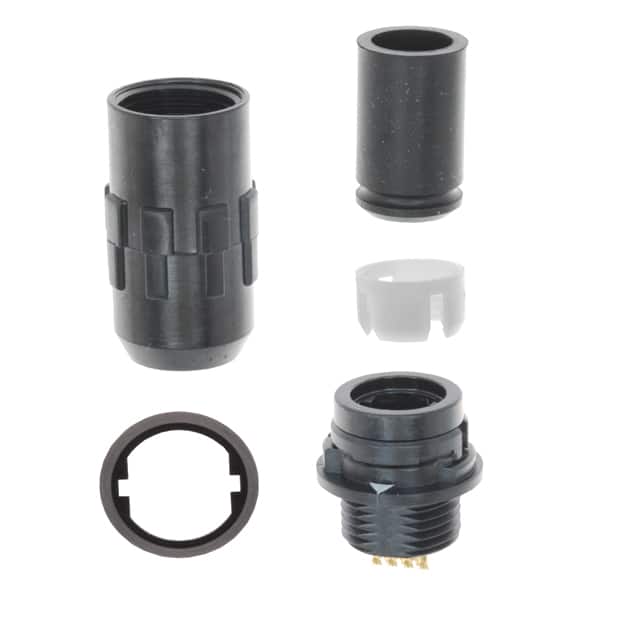

The Hirose HR30-7J-12P(71) is a circular connector jack designed for reliable power connections in demanding environments. It features 12 male power pins with gold-plated contacts for low resistance and corrosion resistance. The connector uses a push-pull fastening mechanism and is keyed for proper orientation.
This connector is rated for 2A current and 30VAC/42VDC voltage, with an operating temperature range of -25°C to 85°C. It is constructed with a polyphenylene sulfide (PPS) shell and plastic primary material, meeting UL94 V-0 flammability rating. The black housing includes a backshell and strain relief for cable support.
With an IP67/IP68 ingress protection rating, the HR30-7J-12P(71) is dust-tight and waterproof, suitable for outdoor or harsh industrial applications. The free-hanging (in-line) mounting and solder cup termination simplify field installation. The cable opening accommodates diameters from 6.20mm to 7.00mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.67 | $12.67 |
| 10+ | $10.78 | $10.78 |
| 25+ | $10.10 | $10.10 |
| 50+ | $10.09 | $10.09 |
| 250+ | $9.31 | $9.31 |
| 500+ | $8.50 | $8.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 power positions.
The current rating is 2A.
The voltage rating is 30VAC and 42VDC.
It is free hanging (in-line) with solder cup termination.
It is rated IP67/IP68, dust tight and waterproof.
The operating temperature range is -25°C to 85°C.
The shell is made of polyphenylene sulfide (PPS) with UL94 V-0 flammability rating.
