| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

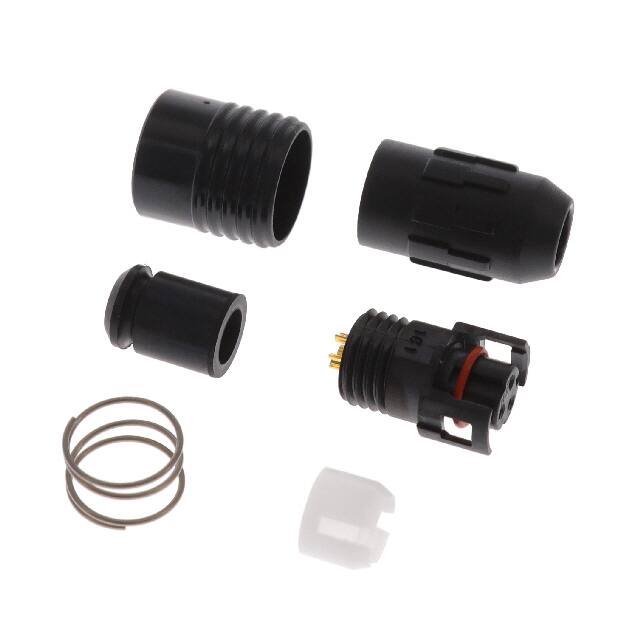

The Hirose HR30-6P-3S(31) is a circular connector plug from the HR30 series, designed for reliable power connections in demanding environments. It features 3 power positions with female socket contacts, gold-plated for corrosion resistance and low contact resistance. The connector uses a push-pull fastening mechanism and is keyed for proper orientation.
This plug is rated for 5A current and 100VAC/140VDC voltage, with an operating temperature range of -25°C to 85°C. It offers IP67/IP68 ingress protection, making it suitable for applications where dust and water exposure are concerns. The shell is made of polybutylene terephthalate (PBT) plastic with a UL94 V-0 flammability rating.
Termination is via solder cup, and the connector includes a backshell, coupling nut, and strain relief for secure cable management. It accepts cable diameters from 4.20mm to 5.00mm. The connector is free-hanging (in-line) mount type and is unshielded.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.12 | $13.12 |
| 10+ | $11.16 | $11.16 |
| 25+ | $10.46 | $10.46 |
| 50+ | $9.95 | $9.95 |
| 100+ | $9.47 | $9.47 |
| 250+ | $8.88 | $8.88 |
| 500+ | $8.83 | $8.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HR30-6P-3S(31) is rated for 5A continuous current.
It is rated for 100VAC and 140VDC.
The connector is free hanging (in-line) mount type.
The connector has IP67/IP68 ingress protection, meaning it is dust tight and waterproof.
It uses solder cup termination.
