| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

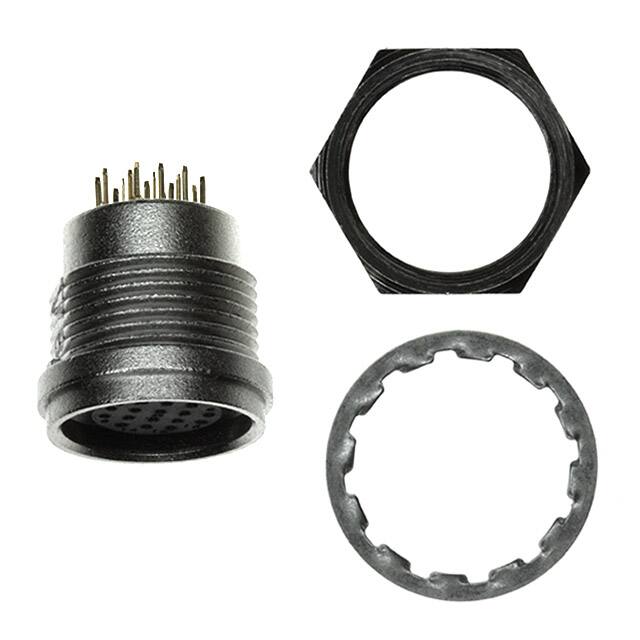

The HR25A-9R-16SA is a circular connector receptacle from Hirose Electric. It features 16 female socket contacts arranged in a shell size 9 housing. The connector is designed for panel mount applications with through-hole solder termination.
The contacts are gold-plated for reliable conductivity and corrosion resistance. The connector is rated for a current of 1 A and voltage of 30VAC or 42VDC. It operates over a temperature range of -25°C to 85°C. The shell is made of zinc alloy with a nickel finish, giving it a silver color. The connector uses a push-pull fastening mechanism and is keyed for proper orientation.
Mounting is achieved via a bulkhead rear side nut, allowing secure panel installation. The insulator material has a UL94 V-0 flammability rating. The connector is specified as RoHS3 compliant, REACH unaffected, and has an MSL of Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $28.61 | $28.61 |
| 10+ | $24.32 | $24.32 |
| 25+ | $23.99 | $23.99 |
| 60+ | $21.44 | $21.44 |
| 120+ | $21.43 | $21.43 |
| 300+ | $21.05 | $21.05 |
| 540+ | $20.72 | $20.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 16 positions (female sockets).
The current rating is 1 A.
The voltage rating is 30VAC and 42VDC.
The mounting type is panel mount with through-hole solder termination, using a bulkhead rear side nut.
The contact finish is gold.
The operating temperature range is -25°C to 85°C.
The shell is made of zinc alloy with a nickel finish, giving it a silver color.
