| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Voltage Rating DC |

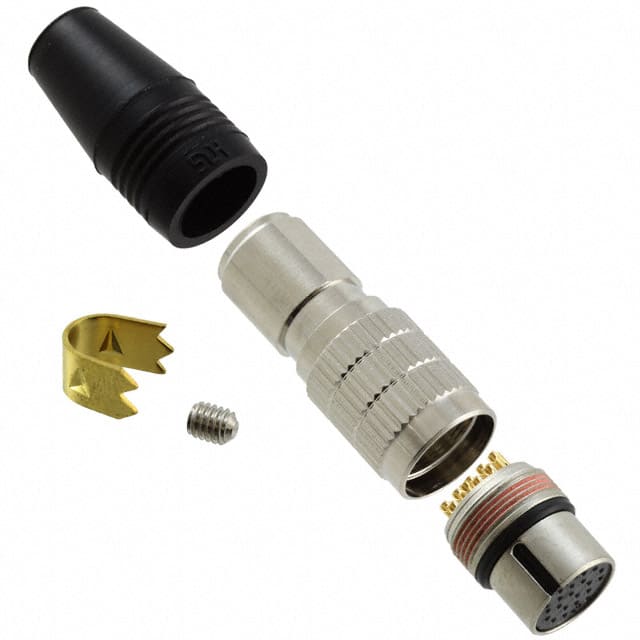

The Hirose Electric HR25-9TP-20S(73) is a circular connector plug featuring 20 female socket contacts arranged in a shell size 9, with a solder cup termination style. The connector uses a threaded coupling nut for secure mating and includes a backshell, clamp, coupling nut, and strain relief. The shell is made of zinc alloy with a nickel finish, providing durability and shielding for EMI protection.
Electrical ratings include a maximum current of 1A per contact, with voltage ratings of 30VAC and 42VDC. The operating temperature range is -25°C to 85°C, and the insulator material meets UL94 V-0 flammability rating. The connector is keyed for proper orientation and is free-hanging (in-line) mounting.
Gold-plated contacts ensure reliable low-resistance connections over repeated mating cycles. The black and silver color scheme complements industrial equipment designs. This connector is suitable for applications requiring a compact, shielded circular interconnect with moderate pin count.
| Qty | Low | High |
|---|---|---|
| 1+ | $47.08 | $47.08 |
| 10+ | $38.15 | $38.15 |
| 20+ | $36.28 | $36.28 |
| 60+ | $34.11 | $34.11 |
| 100+ | $32.61 | $32.61 |
| 260+ | $31.81 | $31.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 30VAC and 42VDC.
The maximum current rating per contact is 1A.
This connector uses solder cup termination.
Yes, the connector is shielded.
It has 20 positions.
The operating temperature is -25°C to 85°C.
