| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

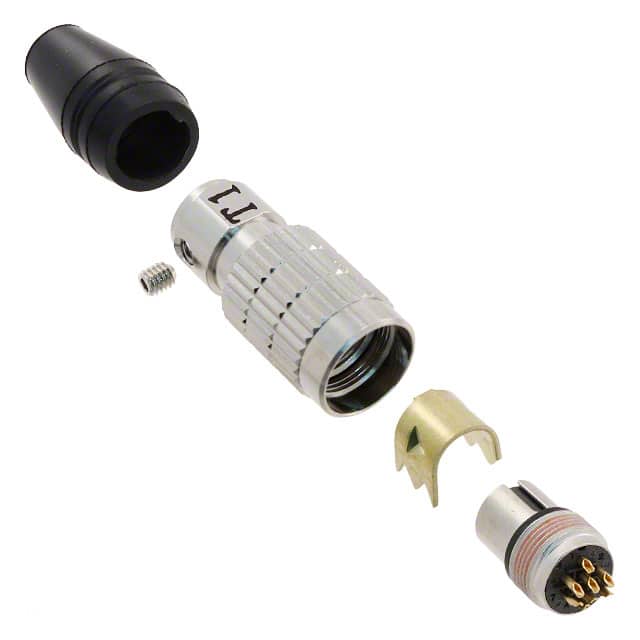

The HR25-7TP-8S(72) is a circular connector plug from Hirose Electric, part of the HR25 series. It features 8 female sockets with gold-plated contacts, designed for solder cup termination. The connector is free hanging (in-line) and uses a threaded coupling mechanism for secure mating. Its keyed orientation prevents incorrect insertion.
Electrically, the connector is rated for 1 A continuous current and 30VAC/42VDC. It operates over a temperature range of -25°C to 85°C and has a UL94 V-0 flammability rating. The housing is shielded for EMI protection.
Mechanically, the connector includes a backshell, clamp, coupling nut, and strain relief. The shell is made of zinc alloy with a nickel finish. The overall color is black and silver. This connector is suitable for applications requiring rugged, shielded connections in industrial, medical, or test equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.07 | $28.07 |
| 10+ | $22.72 | $22.72 |
| 20+ | $21.63 | $21.63 |
| 60+ | $21.02 | $21.02 |
| 100+ | $20.29 | $20.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
1 A.
30VAC, 42VDC.
Free Hanging (In-Line).
-25°C to 85°C.
Yes, it is shielded.
Zinc alloy with nickel finish.
