Mfr Part #:

HR25-7TP-8P(72)

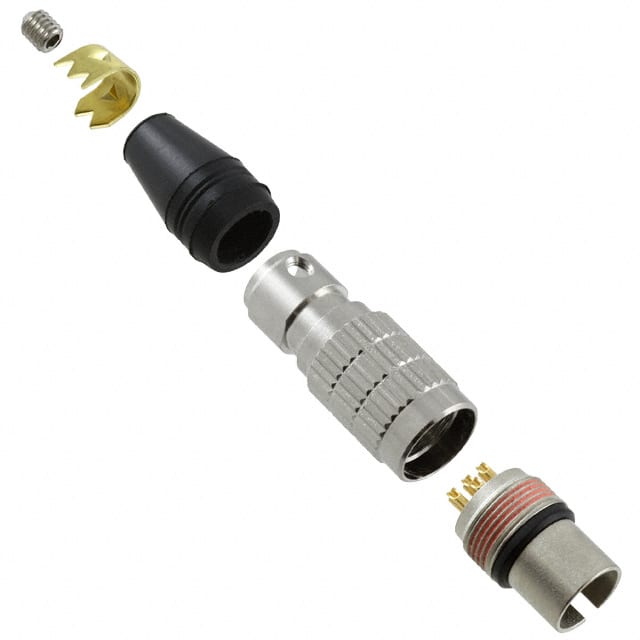

8-position circular connector plug with male pins and gold-plated solder cup contacts. Features threaded coupling, shielded metal shell, and nickel finish.

✓ Total Stock: 140 pcs

$ Price Range: $21.29 - $27.47

HR25-7TP-8P(72) Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	140 pcs On Request	140 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HR25-7TP-8P(72) Description

Short technical summary and product information.

The HR25-7TP-8P(72) is a circular connector plug from Hirose Electric designed for reliable signal and low-power connections. It houses 8 male pins arranged in a size 7 shell with gold-plated contacts for corrosion resistance and reliable conductivity. The connector uses a solder cup termination method, allowing easy hand or dip soldering of wires. The plug features a threaded coupling nut for secure mating and a full-metal shield with a nickel-plated zinc alloy shell to protect against electromagnetic interference. It includes a backshell, clamp, and strain relief to protect the cable entry point.

The connector is rated for a maximum of 1A current and 30VAC or 42VDC. It is designed for free-hanging (in-line) mounting and operates over a temperature range of -25°C to 85°C. The insulator material meets UL94 V-0 flammability rating. These characteristics make it suitable for industrial control, instrumentation, and sensor applications where a compact, shielded circular interface is required.

HR25-7TP-8P(72) Quick Information

Product Type: Circular Connector Plug

Series: HR25

Canonical Name: Circular Connector Plug, Male Pins, 8 Positions, Shielded, Threaded, Solder Cup

Subcategory: Circular Connector Assemblies

HR25-7TP-8P(72) Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HR25-7TP-8P(72) Estimated Pricing

Qty	Low	High
1+	$27.47	$27.47
10+	$23.75	$23.75
20+	$22.60	$22.60
60+	$21.55	$21.55
100+	$21.29	$21.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

HR25-7TP-8P(72) Features

8-position male pin circular connector.
Gold-plated solder cup contacts.
Shielded metal shell with nickel finish.
Threaded coupling for secure mating.
UL94 V-0 rated insulator material.

HR25-7TP-8P(72) Applications

For signal connections in industrial control panels.
Suitable for sensor and actuator cable assemblies.
Used in electronic test equipment requiring shielded interconnect.

HR25-7TP-8P(72) FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

8 positions.

What is the current rating?

1A maximum.

What is the voltage rating?

30VAC / 42VDC maximum.

What is the mounting type?

Free Hanging (In-Line).

What is the operating temperature range?

-25°C to 85°C.

What is the contact finish?

Gold.

What type of connector is it?

Circular connector plug with male pins.

Category	Circular Connector Assemblies
Manufacturer Name	Hirose Electric
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish	Gold
Current Rating (Amps)	1A
Fastening Type	Threaded
Features	Backshell, Clamp, Coupling Nut, Strain Relief
Lead Style	Solder Cup
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature	-25°C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size	7
Shielding	Shielded
Tape & Reel	No
Termination	Solder Cup
Voltage Rating	30VAC V
