| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

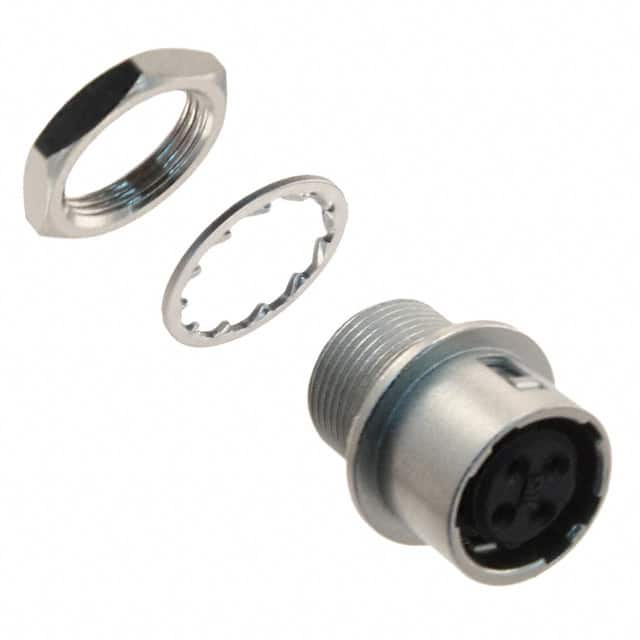

The HR10A-7R-4S(73) is a panel-mount circular connector receptacle from Hirose Electric's HR10 series. It features a compact push-pull coupling mechanism for easy one-touch connection and disconnection. The connector has 4 female socket contacts with silver finish, designed for solder cup termination. The metal shell is made of zinc alloy with a satin-finished nickel plate, providing durability and a refined appearance. Electrical ratings include 2A current, 150VAC and 200VDC voltage, with an operating temperature range of -25°C to 85°C. The insulator is made of polyamide or PBT, and the material flammability rating is UL94 V-0. The five-key polarization system ensures correct mating orientation. This connector is suitable for small-sized electronic equipment requiring high reliability, especially portable devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.89 | $8.89 |
| 10+ | $7.23 | $7.23 |
| 20+ | $6.88 | $6.88 |
| 60+ | $6.69 | $6.69 |
| 100+ | $6.45 | $6.45 |
| 260+ | $6.03 | $6.03 |
| 500+ | $5.76 | $5.76 |
| 1,000+ | $5.59 | $5.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 4 positions (female sockets).
The current rating is 2 A.
The voltage rating is 150 VAC and 200 VDC.
Panel mount with bulkhead rear side nut.
Push-pull coupling.
-25°C to 85°C.
Silver.
