| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,288 pcs
|
1288 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 16.10.19M | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulator Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

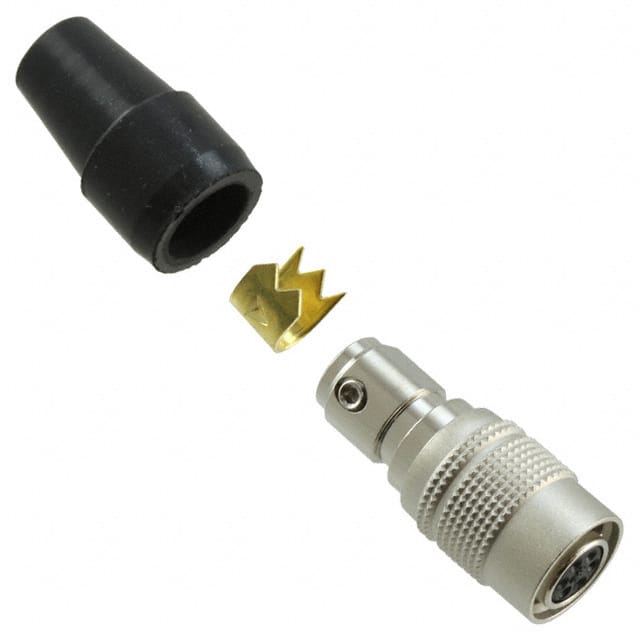

The Hirose HR10A-7P-6S(73) is a compact circular connector plug from the HR10 series, designed for applications requiring reliable push-pull coupling. It features 6 female socket contacts with silver-plated beryllium copper or phosphor bronze terminals, housed in a nickel-plated zinc alloy shell. The connector uses a solder cup termination style and includes a backshell, clamp, and strain relief for secure cable management.
This connector is rated for 2A current and 100VAC/140VDC voltage, with an operating temperature range of -25°C to 85°C. The insulator is made of polyamide (PA) or PBT, and the material flammability rating is UL94 V-0. The keyed orientation ensures correct mating, and the push-pull mechanism allows quick and easy connection and disconnection.
Designed for free-hanging (in-line) mounting, the HR10A-7P-6S(73) is suitable for small electronic equipment where space is limited. Its compact size and robust construction make it ideal for portable devices and other applications requiring high reliability and easy handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.31 | $18.31 |
| 10+ | $15.05 | $15.05 |
| 20+ | $14.32 | $14.32 |
| 60+ | $13.92 | $13.92 |
| 100+ | $13.43 | $13.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a plug with female sockets.
6 positions.
Free hanging (in-line).
Solder cup.
Push-pull.
100VAC, 140VDC and 2A.
-25°C to 85°C.
