| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
780 pcs
|
780 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulator Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Weight |

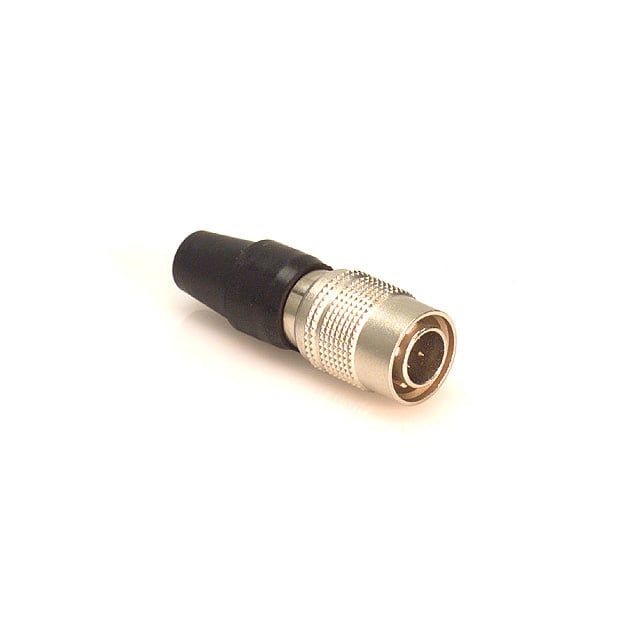

The Hirose HR10A-7P-4P(73) is a 4-position male plug circular connector from the HR10 series, designed for compact push-pull coupling applications. It features a metal shell with satin nickel finish, silver-plated brass/bronze contacts, and a solder cup termination style for easy wiring. The connector is keyed for proper orientation and includes a backshell, clamp, and strain relief for secure cable management.
Electrical ratings include 2A current capacity and voltage ratings of 150VAC and 200VDC. The operating temperature range is -25°C to 85°C, and the insulator material is polyamide/PBT with a UL94 V-0 flammability rating. The free-hanging (in-line) mounting type makes it suitable for cable-to-cable or cable-to-panel connections in space-constrained environments.
This connector is ideal for portable electronic equipment, medical devices, and industrial instrumentation where reliable, quick-connect push-pull mating is required. The five-key polarization system ensures correct alignment even during blind mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.85 | $15.85 |
| 10+ | $15.34 | $15.34 |
| 20+ | $13.24 | $13.24 |
| 60+ | $12.89 | $12.89 |
| 100+ | $12.27 | $12.27 |
| 260+ | $11.54 | $11.54 |
| 500+ | $11.44 | $11.44 |
| 1,000+ | $11.25 | $11.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a plug with male pins, push-pull coupling, and keyed orientation.
It has 4 positions.
The current rating is 2A.
It is rated for 150VAC and 200VDC.
It is designed for free hanging (in-line) mounting with solder cup termination.
The operating temperature range is -25°C to 85°C.
The shell is zinc alloy with nickel finish, contacts are silver-plated brass/bronze, and the insulator is polyamide/PBT.
