| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
540 pcs
|
540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

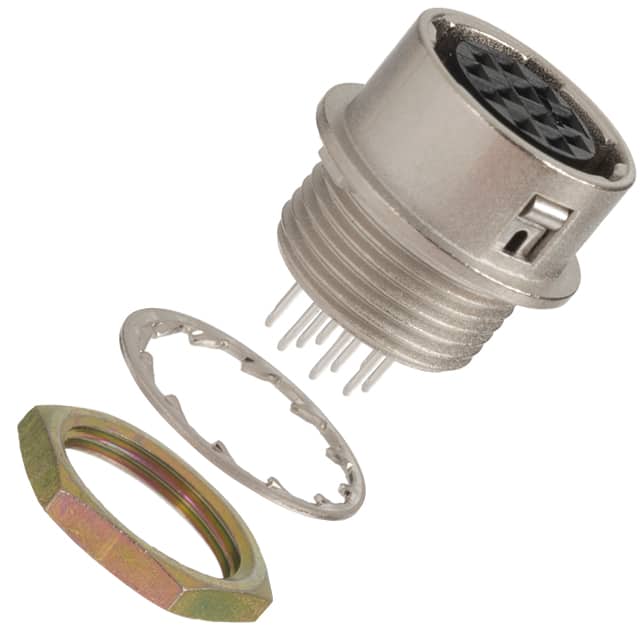

The HR10A-10R-12SB(71) is a circular connector receptacle from Hirose Electric's HR10A series. It features 12 female socket contacts with a silver finish, housed in a metal shell with a nickel finish. The connector uses a push-pull fastening mechanism and a keyed orientation for secure mating.
This receptacle is designed for panel mount installation with a bulkhead rear-side nut and through-hole solder termination. It is rated for 2A current and 100VAC/140VDC, with an operating temperature range of -25°C to 85°C. The insulator material carries a UL94 V-0 flammability rating.
The unshielded zinc alloy shell provides durability in industrial environments. The silver contact finish ensures reliable conductivity for signal and low-power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.11 | $12.11 |
| 10+ | $10.44 | $10.44 |
| 25+ | $9.79 | $9.79 |
| 60+ | $9.20 | $9.20 |
| 120+ | $8.76 | $8.76 |
| 300+ | $8.22 | $8.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female socket contacts.
It has 12 positions.
The current rating is 2A.
It is rated for 100VAC and 140VDC.
It uses panel mount with through-hole solder termination.
The operating temperature range is -25°C to 85°C.
The shell is made of zinc alloy with a nickel finish.
