| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,020 pcs
|
1020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

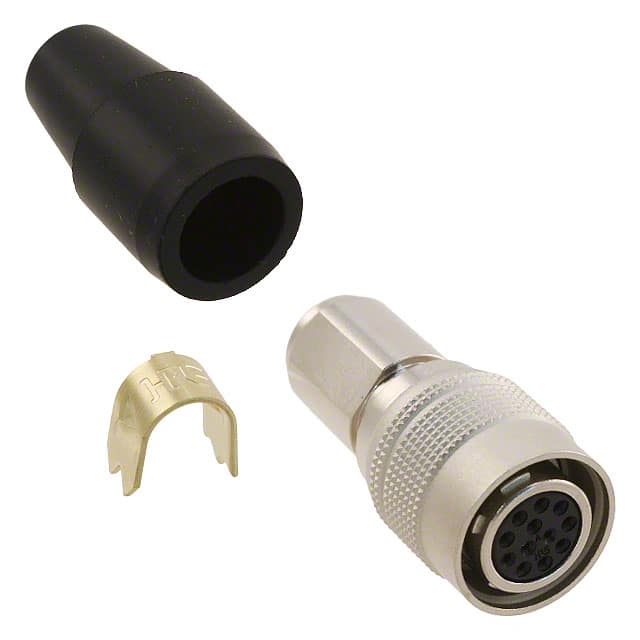

The Hirose Electric HR10A-10P-12S(73) is a circular connector plug from the HR10 series, designed for compact and reliable connections. It features 12 female socket contacts with silver plating, housed in a metal shell made of zinc alloy with a satin nickel finish. The connector uses a push-pull coupling mechanism for quick and secure mating, and a keyed orientation ensures correct alignment.
This connector is rated for 2A current per contact and 100VAC/140VDC voltage. It operates over a temperature range of -25°C to 85°C and has a UL94 V-0 flammability rating for the insulator. The termination style is solder cup, suitable for free-hanging (in-line) mounting. The connector includes a backshell, clamp, and strain relief for cable management.
The HR10 series is known for its compact size and high-density design, making it ideal for portable electronic equipment and other applications requiring reliable push-pull connections. The connector is unshielded and has a silver color finish.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.53 | $23.53 |
| 10+ | $20.00 | $20.00 |
| 20+ | $19.03 | $19.03 |
| 60+ | $18.50 | $18.50 |
| 100+ | $17.82 | $17.82 |
| 260+ | $17.43 | $17.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
2A per contact.
100VAC and 140VDC.
Free Hanging (In-Line).
Solder Cup.
-25°C to 85°C.
Zinc alloy with nickel finish.
