| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Shell Size | |
| Shielding | |
| Storage Temperature | |
| Voltage Rating | |
| Withstanding Voltage |

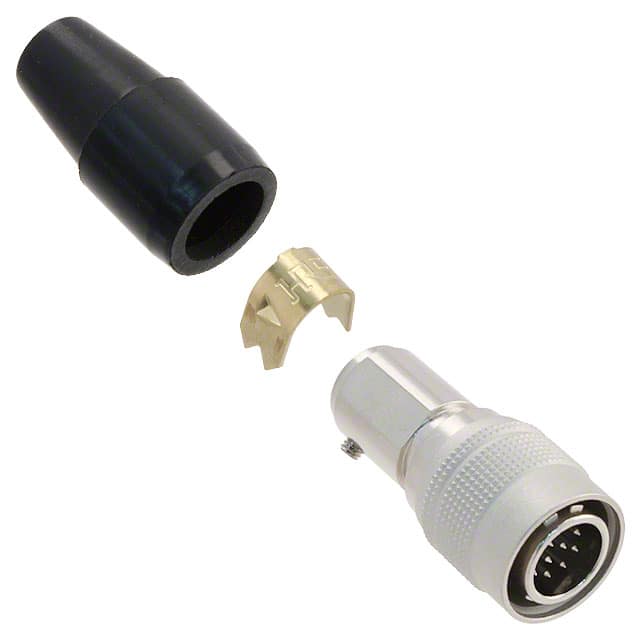

The Hirose HR10A-10P-12P is a high-performance miniature circular connector from the HR10 series. It features a plug with male pins in a shell size 10, accommodating 12 positions. The push-pull lock structure enables quick and easy mating and unmating, ideal for applications requiring frequent connections.
Electrically, the connector is rated for 2 A continuous current and 100 VAC or 140 VDC. It provides a contact resistance of 10 mΩ maximum and insulation resistance of 1000 MΩ minimum, with a withstanding voltage of 300 VAC. The operating temperature range is -25 to +85 °C, making it suitable for a variety of environments.
Mechanically, the connector uses a free hanging (in-line) mounting style and is keyed for orientation to prevent incorrect insertion. It supports up to 1000 mating cycles for reliable long-term use. The unshielded design is appropriate for general-purpose signal and power connections.
The HR10A-10P-12P is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is part of the HR10 series which, under appropriate pin assignment and cable assembly, can support Cat.5e 1 Gbps high-speed Ethernet transmission.
| Qty | Low | High |
|---|---|---|
| 20+ | $11.91 | $11.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
2 A.
100 VAC, 140 VDC.
Free hanging (in-line).
-25 to 85 °C.
1000 cycles.
No, it is unshielded.
