| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Outer Diameter | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Weight |

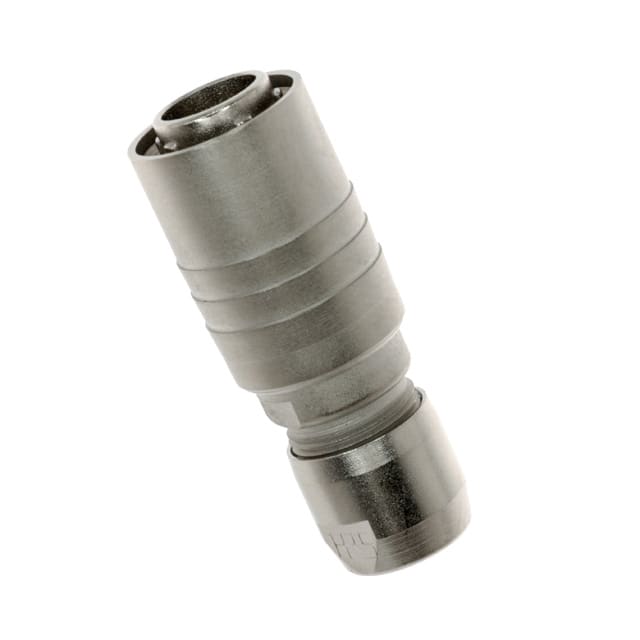

The HR10-7P-4P(73) is a circular connector plug from the Hirose Electric HR10 series. It features 4 male pins with gold-plated contacts for reliable signal transmission. The connector uses a push-pull coupling mechanism for quick and easy mating, with a five-key polarization system that ensures correct orientation even when blind mating.
Rated for 2A current and 150VAC/200VDC voltage, with an operating temperature range of -25°C to 85°C. The shell is made of zinc alloy with a satin nickel finish, and it is unshielded. Designed for free hanging (in-line) mounting with solder cup termination.
Additional features include a backshell and cable clamp, supporting cable openings up to 5.2 mm. The overall length is 28.5 mm with an outer diameter of 11 mm. It is suitable for a variety of small electronic equipment requiring a compact and reliable connector.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.61 | $25.61 |
| 10+ | $20.84 | $20.84 |
| 20+ | $19.83 | $19.83 |
| 60+ | $19.27 | $19.27 |
| 100+ | $18.59 | $18.59 |
| 260+ | $18.29 | $18.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions
2A
150VAC, 200VDC
Free Hanging (In-Line)
-25°C to 85°C
Zinc alloy with nickel plating
Solder cup
