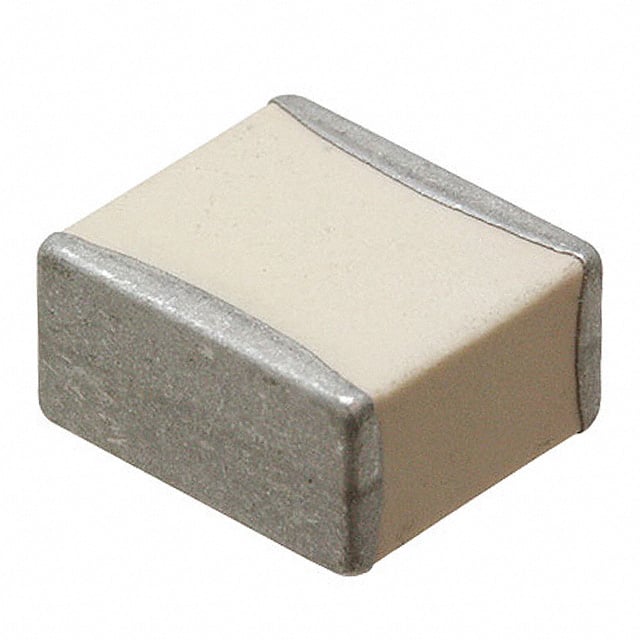

HQCCHA560GAT9A High Q MLCC capacitor with 56pF capacitance, 3000V rated voltage, and C0G/NP0 temperature coefficient. Designed for RF and microwave applications.
Mfr Part #:

HQCCHA560GAT9A

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
High Q MLCC capacitor with 56pF capacitance, 3000V rated voltage, and C0G/NP0 temperature coefficient. Designed for RF and microwave applications.
✓ Total Stock: 416 pcs

HQCCHA560GAT9A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
416 pcs
On Request
416 pcs On Request 1 On Request On Request 1021 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HQCCHA560GAT9A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Features
Length
Mounting Type
Operating Temperature
SVHC Present
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

HQCCHA560GAT9A Description

Short technical summary and product information.

The HQCCHA560GAT9A is a surface-mount multilayer ceramic capacitor (MLCC) from Kyocera AVX. It features a capacitance of 56 pF with a rated voltage of 3000V (3kV) and a tolerance of ±2%.



The capacitor utilizes C0G (NP0) dielectric, providing excellent temperature stability with an operating temperature range of -55°C to 125°C. It is designed for high Q, low loss, and ultra low ESR, making it suitable for demanding RF and high-frequency circuits.



The component is housed in a 2325 (5864 Metric) package with dimensions of 5.84mm length, 6.35mm width, and a maximum thickness of 3.68mm. It supports surface mount mounting.



Typical applications include RF, microwave, and other high frequency circuits where high voltage and high Q performance is required.

HQCCHA560GAT9A Quick Information

Product Type: Multilayer Ceramic Capacitor (MLCC)
Canonical Name: High Q MLCC Capacitor, 56pF, 3kV, C0G/NP0, 2325 Package
Subcategory: High Q MLCC Capacitor

HQCCHA560GAT9A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HQCCHA560GAT9A Features

  • High Q factor for RF circuits.
  • Ultra low ESR for low loss.
  • Rated for 3000V operation.
  • C0G/NP0 temperature stable.
  • Surface mount 2325 package.

HQCCHA560GAT9A Applications

  • Suitable for RF signal circuits.
  • Used in microwave applications.
  • Ideal for high frequency filtering.

HQCCHA560GAT9A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of this capacitor?

56 pF

What is the voltage rating?

3000V (3kV)

What temperature coefficient does it have?

C0G, NP0

What is the capacitance tolerance?

±2%

What is the package/case size?

2325 (5864 Metric)

What is the operating temperature range?

-55°C to 125°C

What applications is this capacitor suitable for?

RF, Microwave, High Frequency
