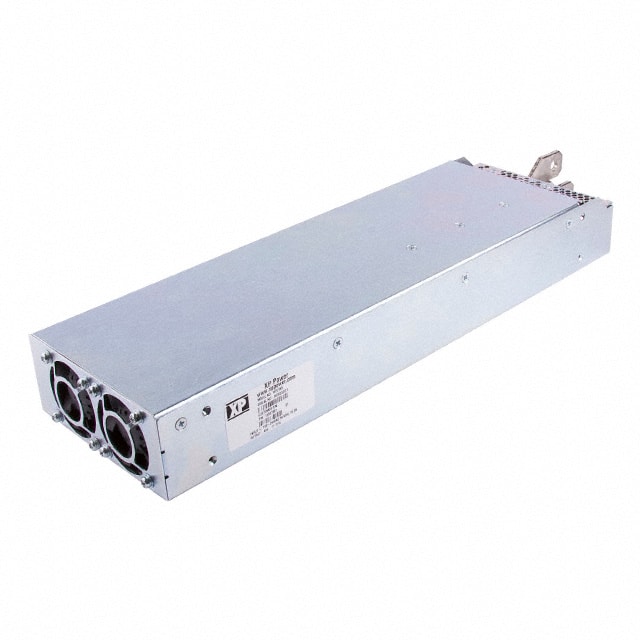

The XP Power HPU1K5PS48 is an enclosed AC/DC converter designed for chassis mounting. It delivers up to 1500W of power with a 48V output and a maximum current of 25A. This converter operates with a universal input voltage range of 85-264 VAC and features an efficiency of 90% typical.
Key features include adjustable output voltage, remote sense capability to compensate for voltage drops, and a standby output. It is designed for ITE (Commercial) applications and meets standard number 62368-1. The operating temperature range is -20°C to +70°C with derating.
With dimensions of 323.9mm x 101.6mm x 43.2mm, the HPU1K5PS48 is suitable for various industrial and commercial applications requiring a reliable power supply. It also includes features like overvoltage protection, overcurrent protection, and short circuit protection for enhanced safety and durability.
-20°C to +70°C, with linear derating from +50°C at 2.5%/°C to 50% load at +70°C.
323.9mm x 101.6mm x 43.2mm, chassis mount, enclosed type.
85-264 VAC, 47-63 Hz.
48V output at 25A, 1500W.
Overvoltage (115-140% of V1), overcurrent (110-140% V1), short circuit (hiccup mode), and overtemperature (auto restart).
4000 VAC input to output (2x MOPP), 1500 VAC input to ground (1x MOPP), 500 VDC output to ground.
90% typical.
