| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | 1042 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

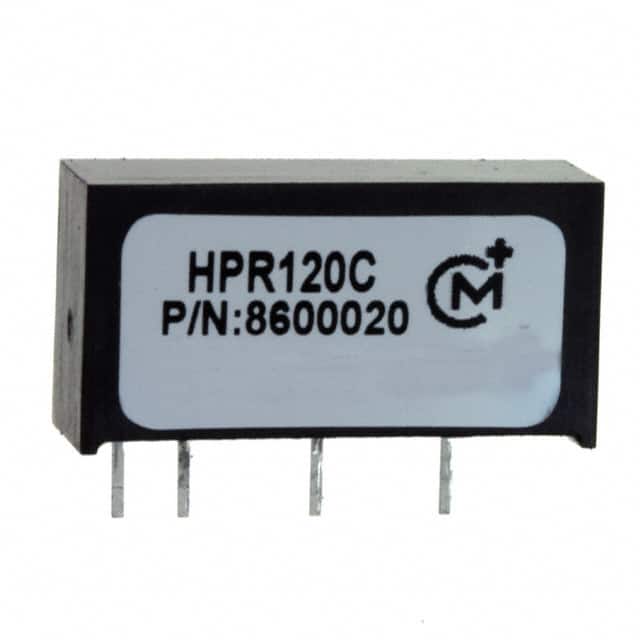

The HPR120C is a 0.75W isolated DC-DC converter from the HPR1XXC series by Murata Power Solutions. It delivers a regulated 15V output at up to 50mA from a nominal 24V input. The converter uses a 170kHz push-pull oscillator topology and achieves 76% typical efficiency. Features include internal input and output filtering, a non-conductive case, and operation over -25°C to +85°C without derating. The module requires a minimum load of 1mA to maintain published specifications. It is packaged in a compact 7-SIP through-hole module measuring 19.6mm x 6.1mm x 10.2mm. The HPR120C is RoHS compliant and suitable for commercial ITE applications.
It provides a single 15V output at 50mA.
The nominal input voltage is 24V.
-25°C to +85°C.
Yes, the datasheet states it is RoHS compliant.
It comes in a 7-SIP Module with 5 leads, through-hole mounting.
Typical efficiency is 76% at nominal input and rated load.
Murata Power Solutions recommends the MER1S2415SC as an alternative.
