| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
106 pcs
|
106 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Input Current (Typical @ No Load) | |
| Input Current (Typical @ Rated Load) | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Reflected Ripple Current | |
| Switching Frequency | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

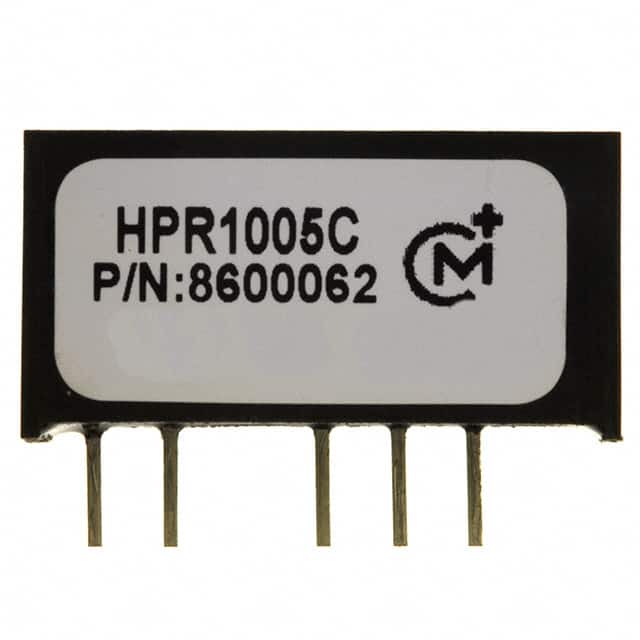

The Murata HPR1005C is an isolated DC-DC converter module from the HPR10XXC series. It operates from a nominal 5V input and provides dual regulated ±15V outputs at ±34mA, delivering 1W of output power. The converter uses a 170kHz push-pull oscillator topology and achieves typical efficiency of 70%.
This through-hole module is housed in a compact 7-SIP package with 5 leads, measuring 19.6mm x 6.1mm x 10.2mm. It features internal input and output filtering and a non-conductive case. The operating temperature range is -25°C to 65°C, and it can operate down to no load with a 1mA minimum load to meet specifications.
The HPR1005C is designed for commercial ITE applications and is RoHS compliant. It offers high output power density of 13W/in³ and low reflected ripple current of 8mAp-p.
The nominal input voltage is 5V DC.
The outputs are ±15V at ±34mA each.
It is a 7-SIP Module with 5 leads, through-hole mounting.
The operating temperature range is -25°C to 65°C.
Yes, it is RoHS compliant per the datasheet.
Typical efficiency is 70%.
The typical switching frequency is 170kHz.
