Mfr Part #:

HPMC-110-03-L-D-03

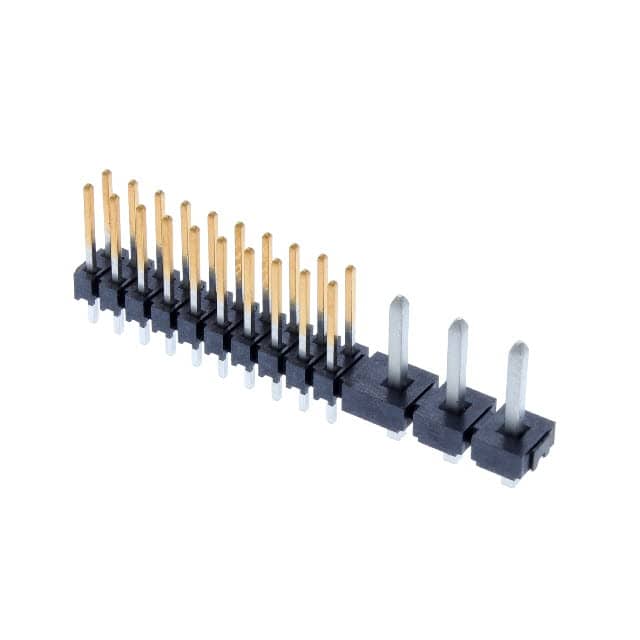

Name: HPMC-110-03-L-D-03
Brand: Samtec Inc.
SKU: HPMC-110-03-L-D-03

Mfr Name: Samtec Inc.

CONN HDR .1" SIGNAL/PWR COMBO

Stock on Request

HPMC-110-03-L-D-03 Description

Short technical summary and product information.

CONN HDR .1" SIGNAL/PWR COMBO

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0碌in (0.25碌m)
Contact Length	0.320" (8.13mm)
Contact Material	Beryllium Copper, Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	23 (20 + 3 Power)
Number of Positions Loaded	All
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.520" (13.21mm)
Shrouding	Unshrouded
Style	Board to Board
Termination	Solder
Voltage Rating	850VAC, 1200VDC
