Mfr Part #:

HPM-10-05-T-S

Samtec HPM-10-05-T-S is a 10-position, single row, unshrouded header with 5.08mm pitch, through hole termination, and tin contact finish. It is rated for 850 VAC / 1202 VDC and operates from -55°C to 105°C.

✓ Total Stock: 249 pcs

$ Price Range: $2.22 - $3.92

HPM-10-05-T-S Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tomark Electronics Ltd ✓ Non-Authorised Inventory information	249 pcs On Request	249 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HPM-10-05-T-S Description

Short technical summary and product information.

The Samtec HPM-10-05-T-S is a high-power unshrouded header designed for board-to-board applications. It features 10 positions in a single row with a 5.08mm (0.200") pitch, making it suitable for power distribution and rugged interconnect systems. The header uses 0.045" (1.14mm) square posts made of copper alloy with a matte tin plating over 50 µ" (1.27 µm) nickel underplating.

This through-hole header has an insulation height of 2.54mm (0.100") and an overall contact length of 10.92mm (0.430"). The insulator is black glass-filled polyester with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C, and the voltage rating is 850 VAC / 1202 VDC. The fastening type is push-pull, and the termination is solder.

Designed for high reliability, the HPM-10-05-T-S is part of the HPM series from Samtec. It mates with the HPF series socket strips. The packaging is bulk. Note that this through-hole version is not lead-free solderable and requires wave soldering only. Compliance with RoHS3 and REACH is confirmed on the manufacturer page.

HPM-10-05-T-S Quick Information

Product Type: Header, Male Pins

Series: HPM

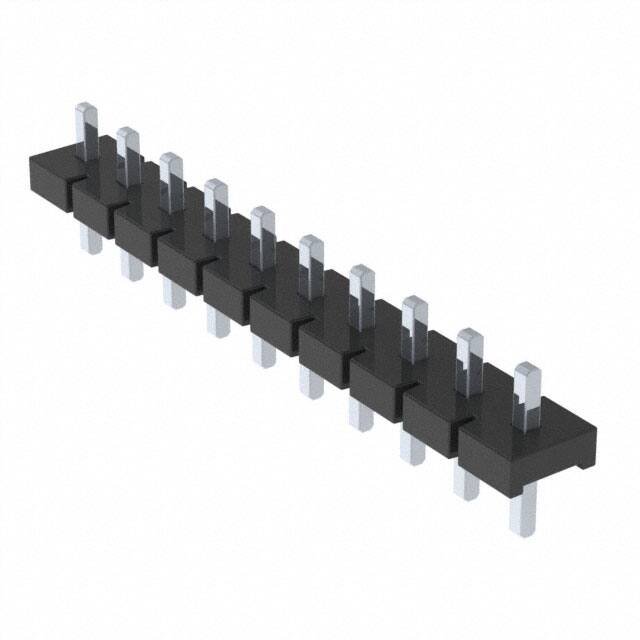

Canonical Name: Samtec HPM-10-05-T-S 10-Position Single Row Unshrouded Header, Through Hole, 5.08mm Pitch

Subcategory: Unshrouded Header

HPM-10-05-T-S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HPM-10-05-T-S Estimated Pricing

Qty	Low	High
1+	$3.92	$3.92
100+	$2.49	$2.49
500+	$2.47	$2.47
2,000+	$2.41	$2.41
5,000+	$2.22	$2.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

HPM-10-05-T-S Features

10 positions on 5.08mm pitch.
Unshrouded single row header.
Through hole termination with tin plating.
Rated for 850VAC/1202VDC.
Operating temperature range -55°C to 105°C.

HPM-10-05-T-S Applications

Board-to-board power interconnection.
Used in industrial and rugged applications.
Suitable for high voltage power distribution.

HPM-10-05-T-S FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the HPM-10-05-T-S have?

10 positions.

What is the pitch of the HPM-10-05-T-S header?

5.08mm (0.200").

What is the voltage rating of the HPM-10-05-T-S?

850 VAC / 1202 VDC.

What is the mounting type of the HPM-10-05-T-S?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin.

Is the header shrouded or unshrouded?

Unshrouded.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	0.150" (3.81mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polyester, Glass Filled
Lead Spacing	5.08 mm
Lead Style	Straight
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 105°C
Overall Contact Length	0.430" (10.92mm)
Pitch	5.08mm (0.200")
Shrouding	Unshrouded
Style	Board to Board
Tape & Reel	No
Termination	Solder
Voltage Rating	850 VAC / 1202 VDC
