| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Wiping Distance |

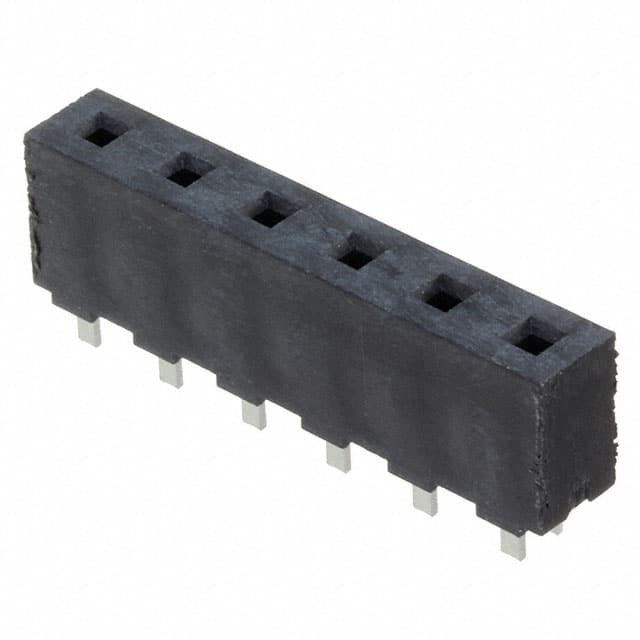

The Samtec HPF-06-01-T-S is a 6-position, single-row receptacle from the HPF series. It features a 5.08mm (0.200") pitch and is designed for board-to-board applications. The connector uses through-hole solder termination and has tin-plated contacts. The insulator is black LCP (Liquid Crystal Polymer) as per the HPF series datasheet. Key mechanical specifications include an insulation height of 8.92mm, contact length of 2.60mm, insertion depth range of 3.68mm to 8.26mm, and a wiping distance of 0.38mm. The operating temperature range is -55°C to +105°C, and the voltage rating is 850 VAC / 1202 VDC. The HPF series is lead-free solderable. This receptacle mates with Samtec HPM and HPW series headers. It is suitable for high-power and high-temperature environments requiring reliable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.59 | $3.59 |
| 54+ | $3.07 | $3.07 |
| 108+ | $2.96 | $2.96 |
| 1,008+ | $2.61 | $2.61 |
| 2,016+ | $2.57 | $2.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
5.08mm (0.200").
850 VAC / 1202 VDC.
Through hole.
-55°C to +105°C.
Tin.
3.68 mm to 8.26 mm.
